Air conditioning filling station HFO1234YF

air conditioning service machine / diagnostic station / air conditioning service / air conditioning filling station

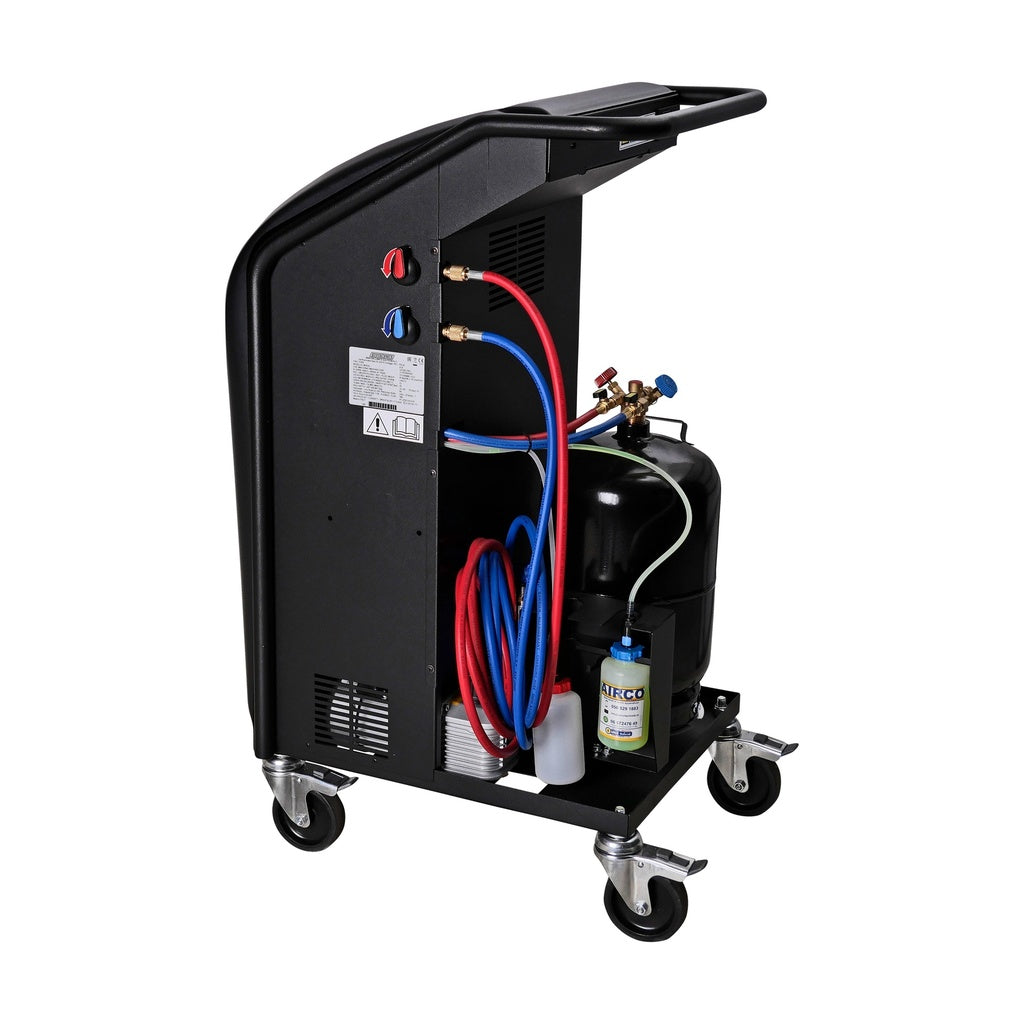

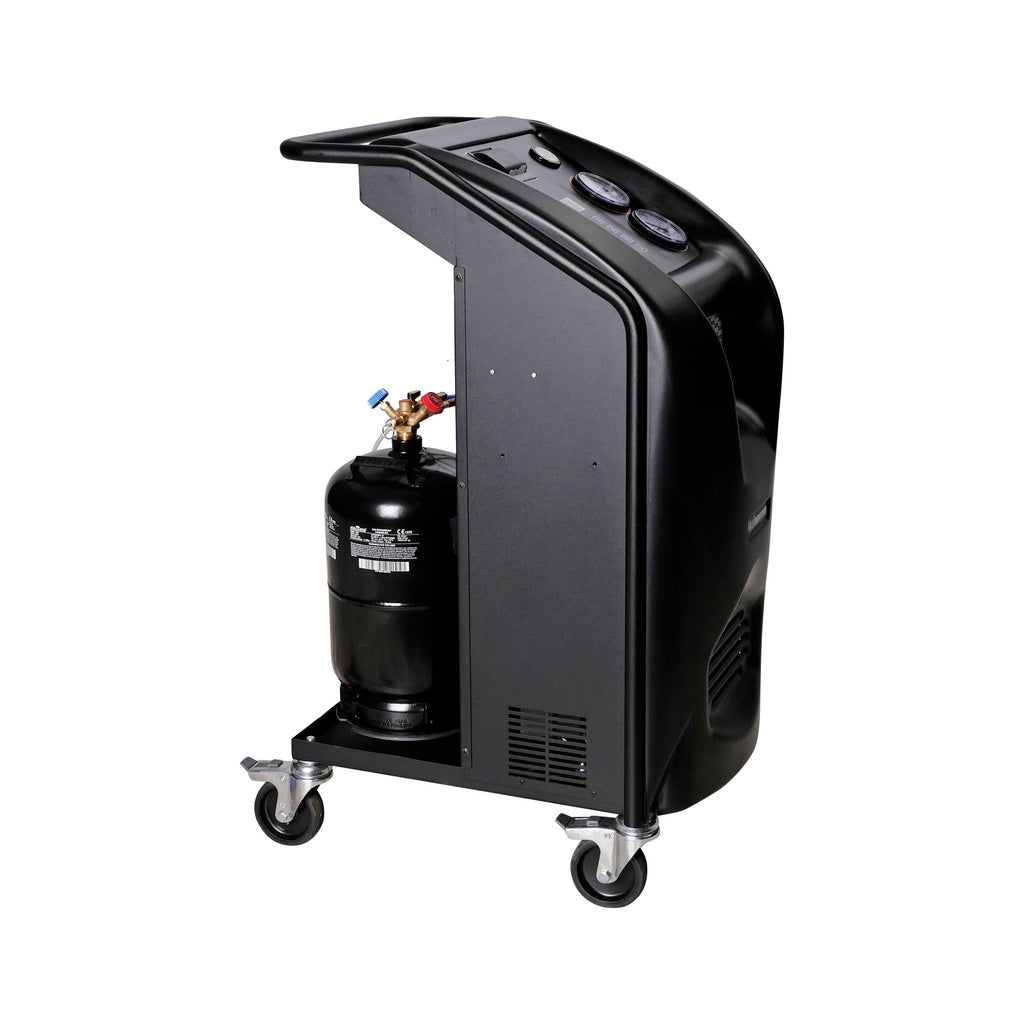

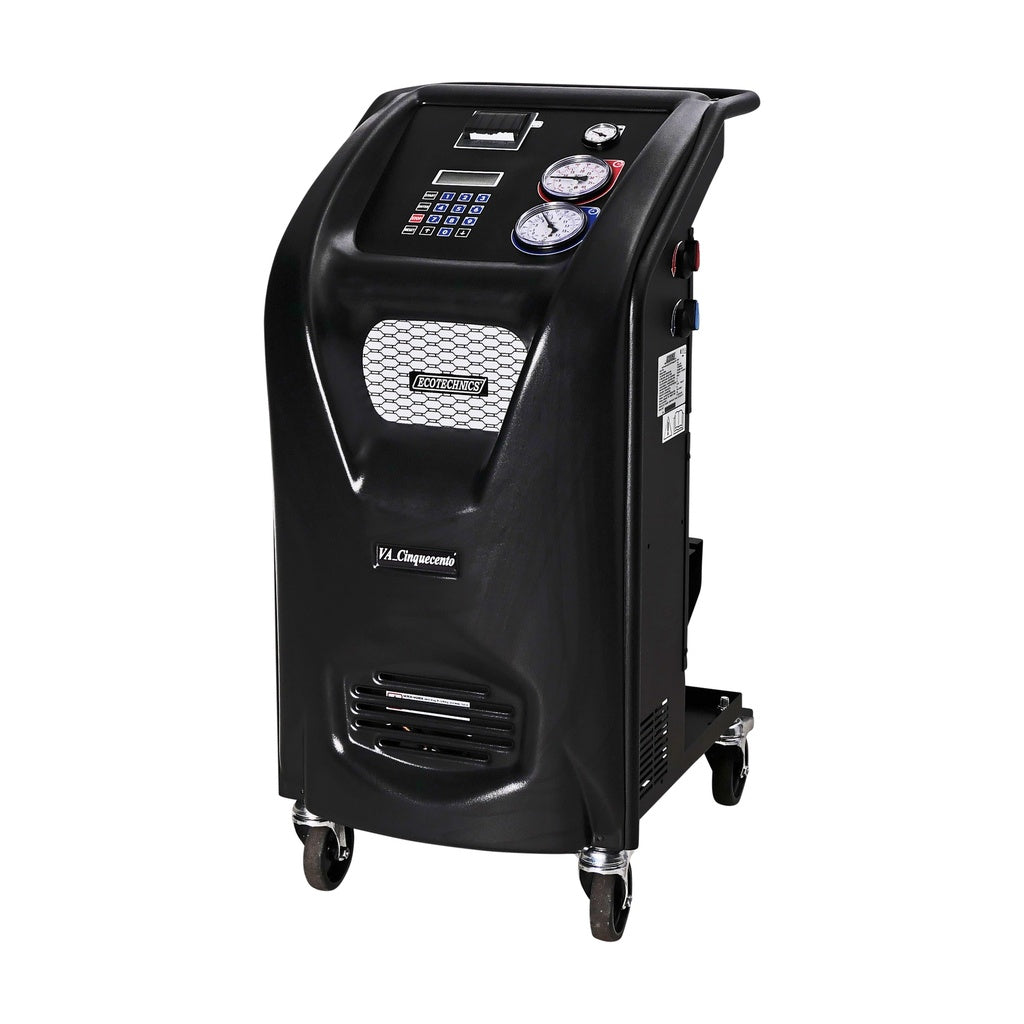

Compact and modern model ACVA500HFO from Ecotechnics is a solid and user-friendly air conditioning filling station especially suitable for HFO refrigerant. The operation of the diagnostic station allows you to completely avoid the ''emissions'' (dispersion) of refrigerant gas into the environment, which are normally released at the end of refilling the car's cooling system, when the filling hoses are removed from it.

The machine recovers almost 100% of the refrigerant and checks the air conditioning system for leaks. Diagnostic station equipment automatic leak test system: check for leaks during the vacuum phase. If a leak is found, it interrupts operation and sounds an alarm. Oil can be filled with both standard refillable containers and hermetic cartridges. The machine has a fully automatic program and can also be put into manual mode in case of diagnosis, where each phase can be carried out one by one. Due to its extremely compact size, the ACVA500 HFO is very suitable for use in mobile workshops, work buses, etc.

The machine is equipped with:

• Freon charge transfer kit

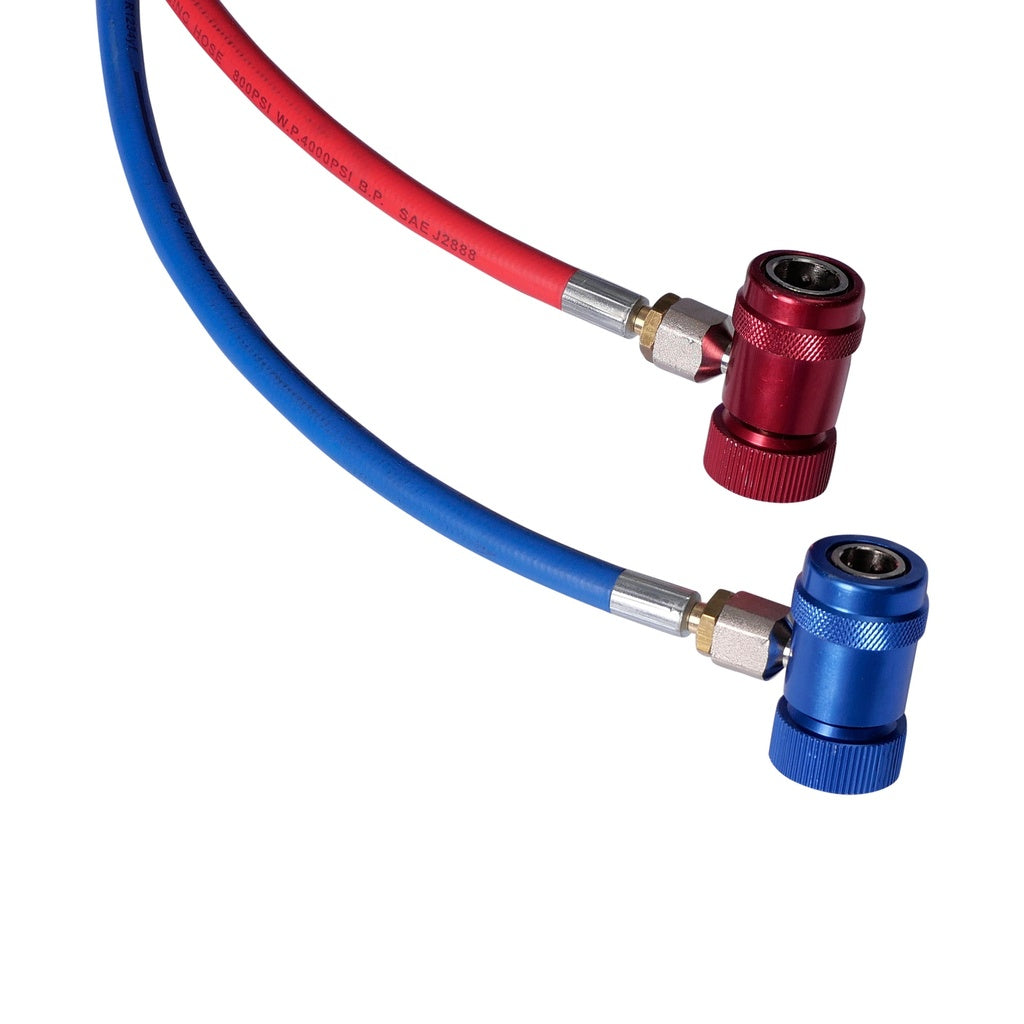

• 3m hose package with quick couplings
• Integrated database Car-Truck-Agri
• Integrated vacuum pump 51 lt/min
• Thermal printer for a fully detailed report

Advantages:

• Fully automatic service
• Electronic oil scale
• Oil type changing function:
• Refillable standard containers for oil and dye
• Automatic leak tests
• CAR method
• Made in Italy

Technical specifications:

• Voltage = 220 - 240V 50/60Hz
• Coolant type = HFO1234YF
• Service valves = Manual
• Non-condensable gas purge = Manual
• Hoses = 3 m
• Vacuum pump capacity = 51 L/min
• Vacuum level = 0.2 Mbar
• Sealed compressor = 1/3 HP
• Recovery rate = 300 g/min in liquid phase
• Tank scale resolution = 10 g
• Working temperature range = 11/49°C
• Filter system = 1 filter for humidity
• Refrigerant tank = 12 liters refillable
