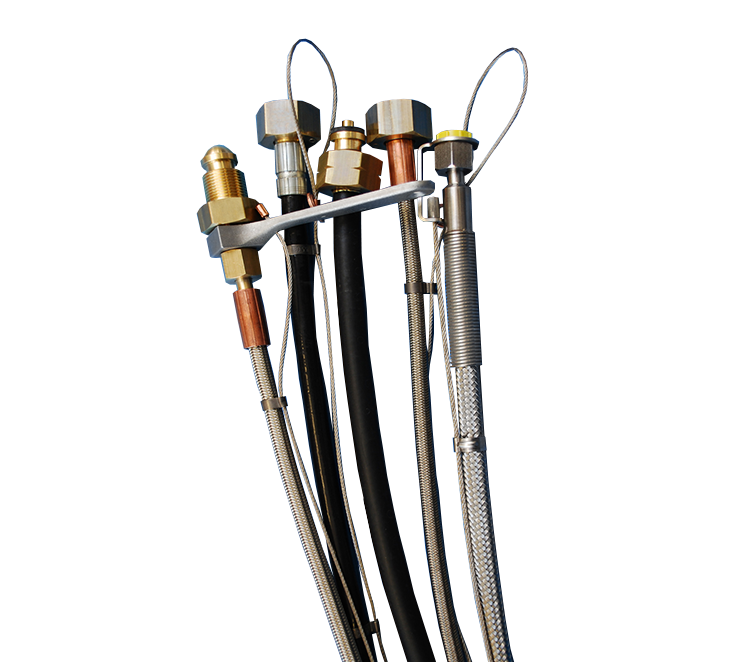

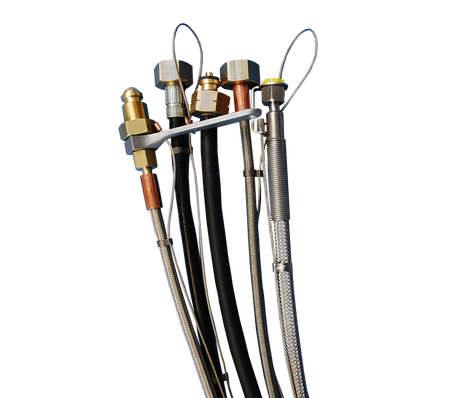

Battery hose carbon dioxide L=75 cm K-flow
Regular price
€62,39
| Article number | 937023 |
| Product name | Battery hose carbon dioxide 75 cm. K-flow complete 3/4"rx 21.8r |
| Kind | carbonic acid |
| Type | 0 |
| Description | This hose has a polyamide inner sheath and a polyurethane outer sheath and is provided with a polyester insert. The hose is produced according to the SAE 100R7 standard. The working pressure is 210 bar and the burst pressure 910 bar. A radius of 55 mm is specified as the minimum bending radius. To prevent torsion in the hose, it is equipped with an anti-twist key. The 3/4"r connection, a connection specifically for Gloor battery bars, has a 21 mm long gland with a copper sealing ring on the battery side. The 21.8r connection on the cylinder side has a 40 mm long gland with a delrin sealing ring. The anti-rotation key is mounted on this side. This hose is fitted with a hose break cable as standard. |
| Weight | 580 grams |
| Height | 30mm |
| Length | 880mm |
| Width | 140mm |
| Remark | To create as few leak points as possible |
