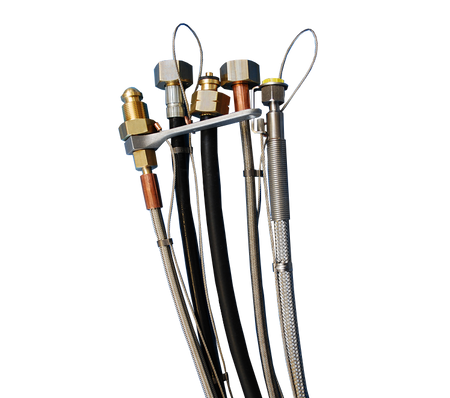

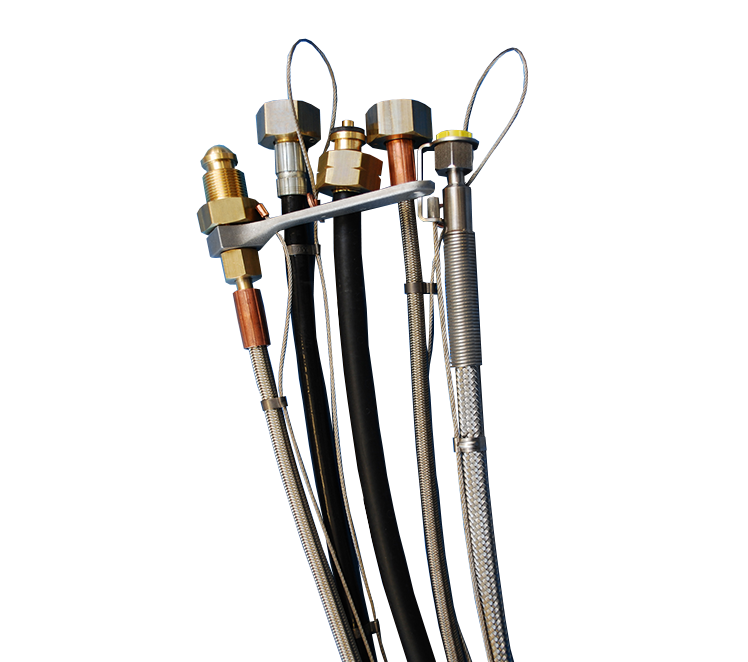

Air battery hose L=75 cm K-flow
Regular price
€69,29
| Article number | 937004 |
| Product name | Air battery hose 75 cm. K-flow complete 21.8rx 28.8r |
| Kind | sky |
| Type | 0 |
| Description | This hose has a polyamide inner sheath and a polyurethane outer sheath and is provided with a polyester insert. The hose is produced according to the SAE 100R7 standard. The working pressure is 210 bar and the burst pressure 910 bar. A radius of 55 mm is specified as the minimum bending radius. To prevent torsion in the hose, it is equipped with an anti-rotation key. The 21.8r connection on the battery side has a 21 mm long gland with a copper sealing ring. The 28.8r connection on the cylinder side is equipped with a 40 mm long gland with a delrin sealing ring. The anti-rotation key is mounted on this side. This hose is supplied with a hose break cable as standard. |
| Weight | 630 grams |
| Height | 36mm |
| Length | 880mm |
| Width | 143mm |
| Remark | To create as few leak points as possible |
