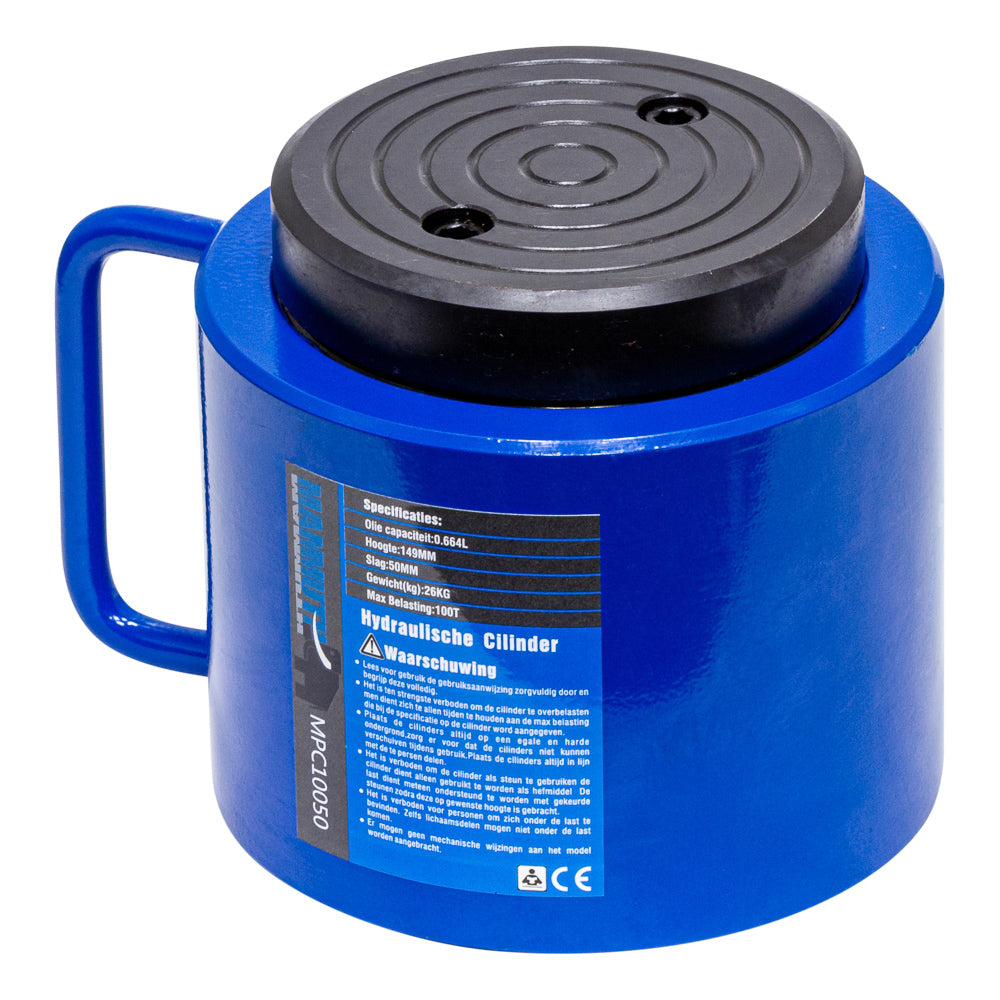

Cylinder 100 tons stroke 50mm
Regular price
€200,00
Hydraulic cylinder
Sturdy underlay to protect the axle when overloaded.
The surface of the main shaft is finished with a chrome plate.
The plunger retracts automatically.
Surface coating is resistant to corrosion.
- tonnage = 100 tons
- stroke = 50mm
- effective cylinder surface = 132.7cm^2
- oil capacity = 0.660 L
- height of product = 162mm
- extended height = 199mm
- outside diameter = 177mm
- support surface diameter = 130mm
- plunger diameter = 110mm
- oil input thread (ZG) = 3/8'' - 22.5
- height of the top cap = 27mm
- top cap is removable
- max. pressure = 700bar
Additional product sizes and packaging information.
- Product weight_____: 26.0
- Product length______: 245.0
- Product width_____: 175.0
- Product height______: 160.0
- Total weight______: 27.0
- Packaging length___: 300.0
- Packaging width__: 195.0
- Packaging height____: 210.0
