Cylinder 150 tons stroke 200mm
Regular price
€550,00

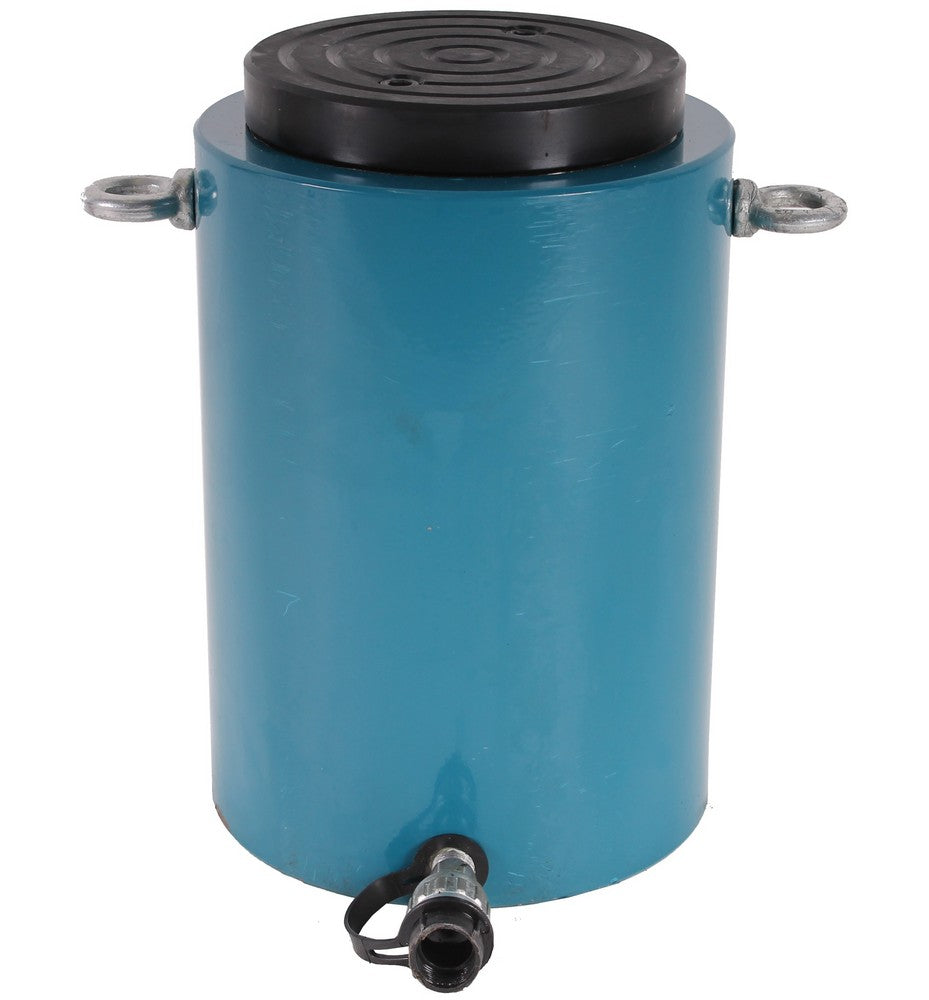

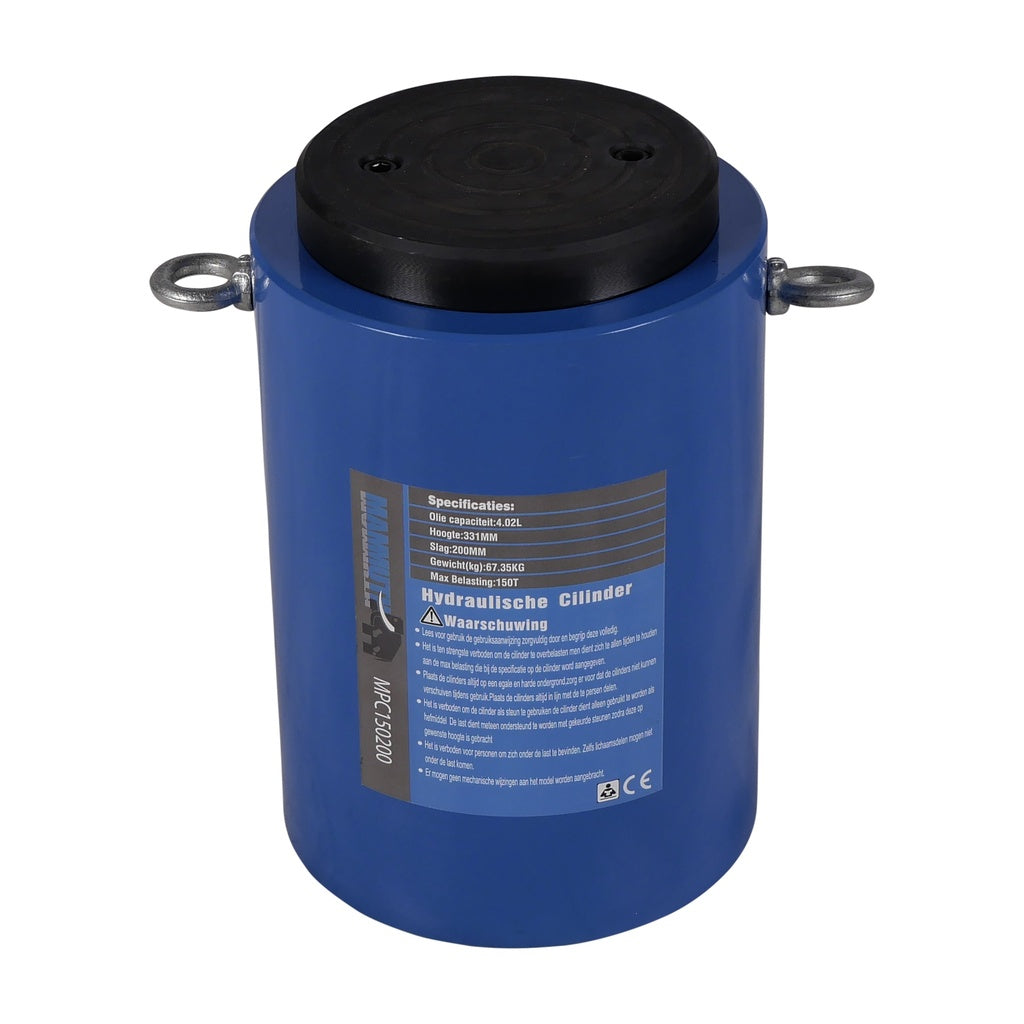

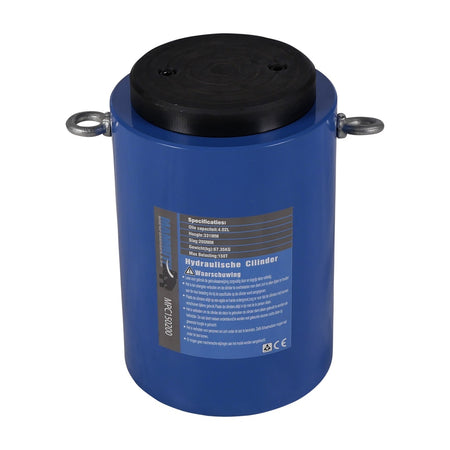

Hydraulic cylinder Sturdy underlay to protect the axle when overloaded. The surface of the main shaft is finished with a chrome plate. The plunger retracts automatically. Surface coating is resistant to corrosion.
Technical specifications:
- tonnage = 150 tons
- stroke = 200mm
- effective cylinder surface = 201cm^2
- oil capacity = 4,020L
- height of product = 316mm
- extended height = 531mm
- outside diameter = 207mm
- support surface diameter = 160mm
- plunger diameter = 140mm
- oil input thread (ZG) = 3/8'' - 20
- height of the top cap = 31mm
- top cap is removable
- max. pressure = 700bar
Additional product sizes and packaging information.
- Product weight_____: 70.0
- Product length______: 275.0
- Product width_____: 205.0
- Product height______: 330.0
- Total weight______: 72.0
- Package length___: 285.0
- Packaging width__: 215.0
- Packaging height____: 340.0
