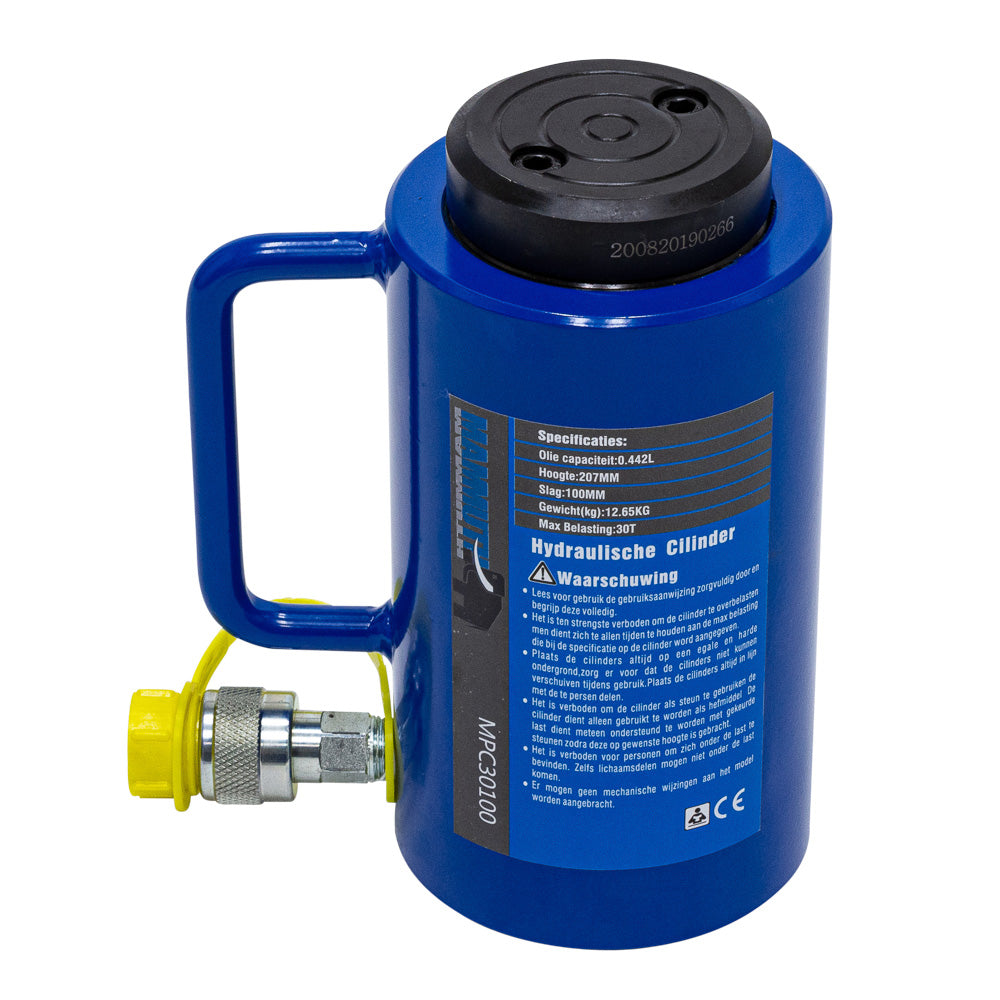

Cylinder 30 tons stroke 100mm

Hydraulic cylinder

Sturdy underlay to protect the axle when overloaded.
The surface of the main shaft is finished with a chrome plate.
The plunger retracts automatically.
Surface coating is resistant to corrosion.

• tonnage = 30 tons
• stroke = 100mm
• effective cylinder surface = 44.2cm^2
• oil capacity = 0.442 L
• height of product = 209mm
• extended height = 307mm
• outside diameter = 107mm
• support surface diameter = 75mm
• plunger diameter = 65mm
• oil input thread (ZG) = 3/8'' - 23
• height of the top cap = 22mm
• top cap is removable
• max. pressure = 700bar

• Product weight_____: 12.5
• Product length______: 170.0
• Product width_____: 100.0
• Product height______: 205.0
• Total weight______: 14.5
• Package length___: 390.0
• Packaging width__: 190.0
• Packaging height____: 210.0
