Productinformatie:

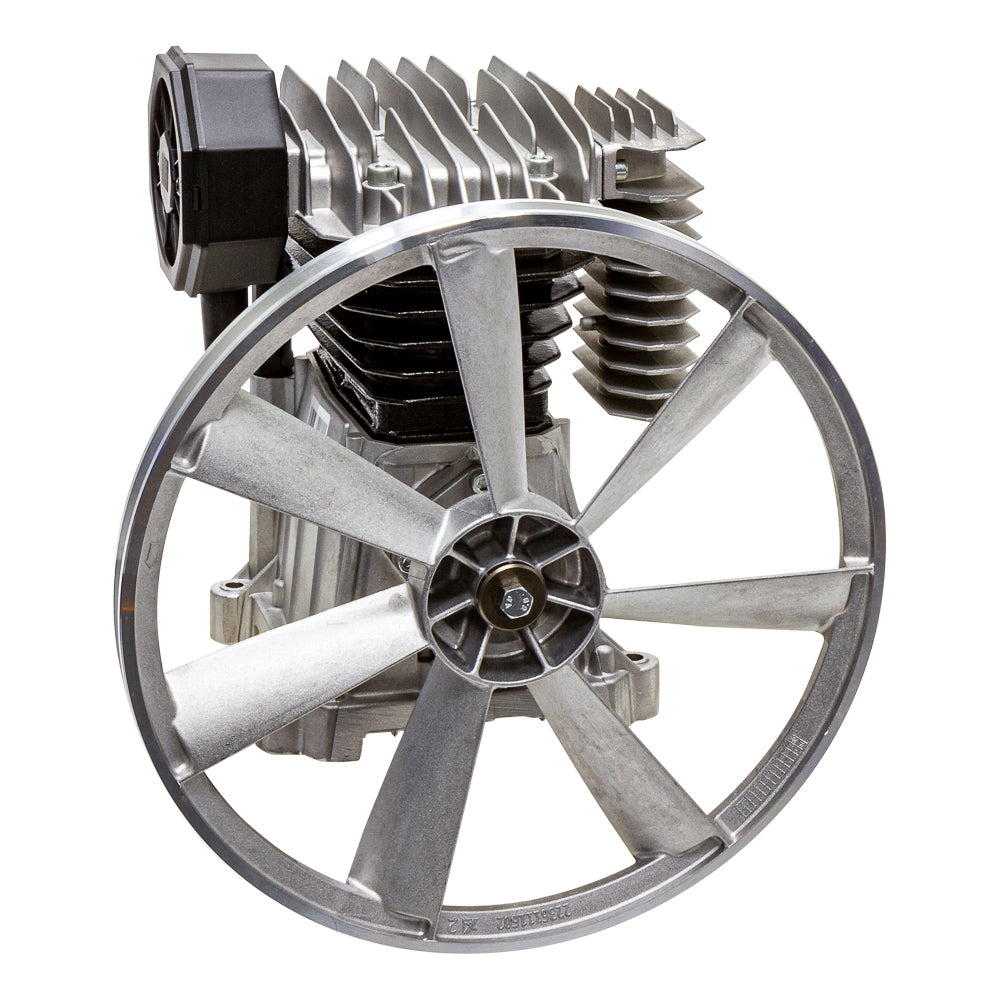

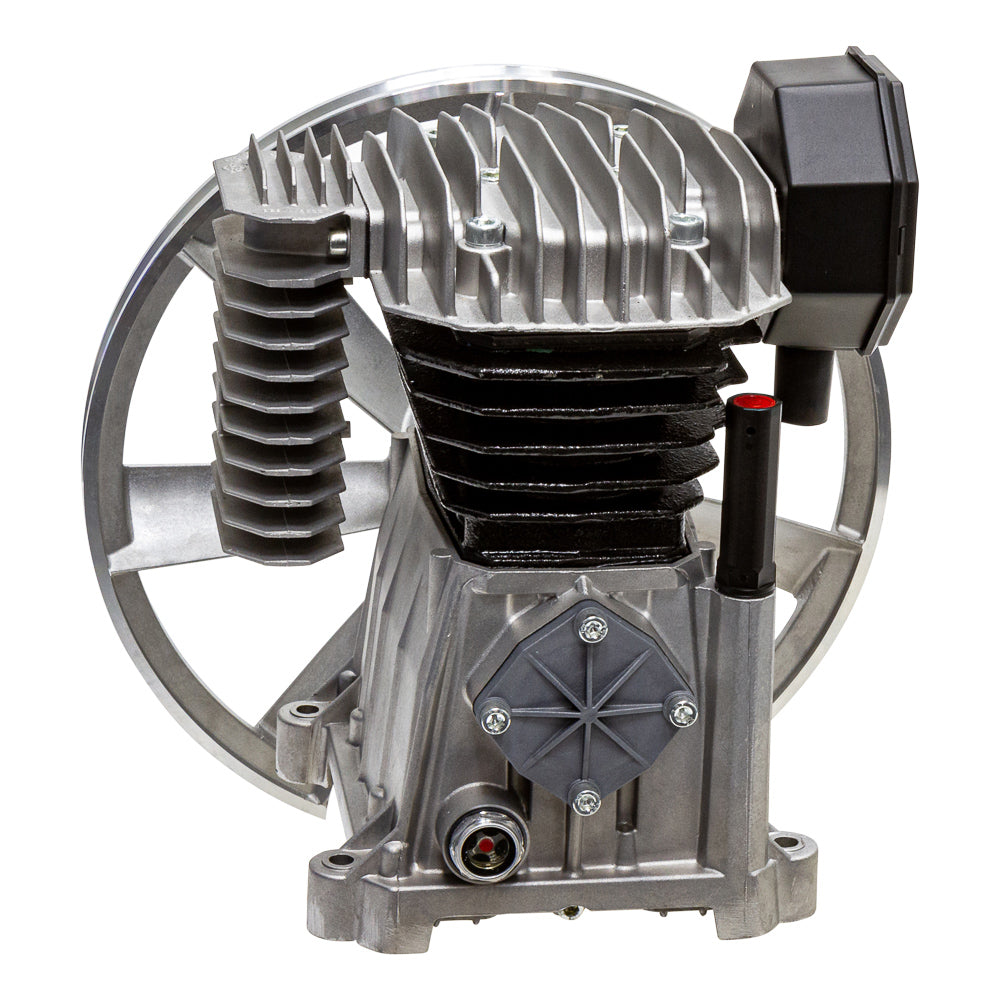

Compressor pump

Zion-Air CP compressor pumps are of excellent quality.
Each CP pump is valve controlled and equipped with a cast iron cylinder wall.
Air filter / gasket and valve sets are available from stock.
Pump is supplied including pulley.

- pump for CP22A10 / CP22A103 compressor
- number of cylinders = 2
- construction method pump = line
- air pressure = 10bar
- air output = 320 L/min - speed = 1350rpm

- pulley diameter = 332mm

- center to center left to right = 160mm

- center to center front to back = 130mm

• Product weight_____: 9.5
• Product length______: 330.0
• Product width_____: 260.0
• Product height______: 290.0
• Total weight______: 11.0
• Packaging length___: 360.0
• Packaging width__: 280.0
• Packaging height____: 390.0
