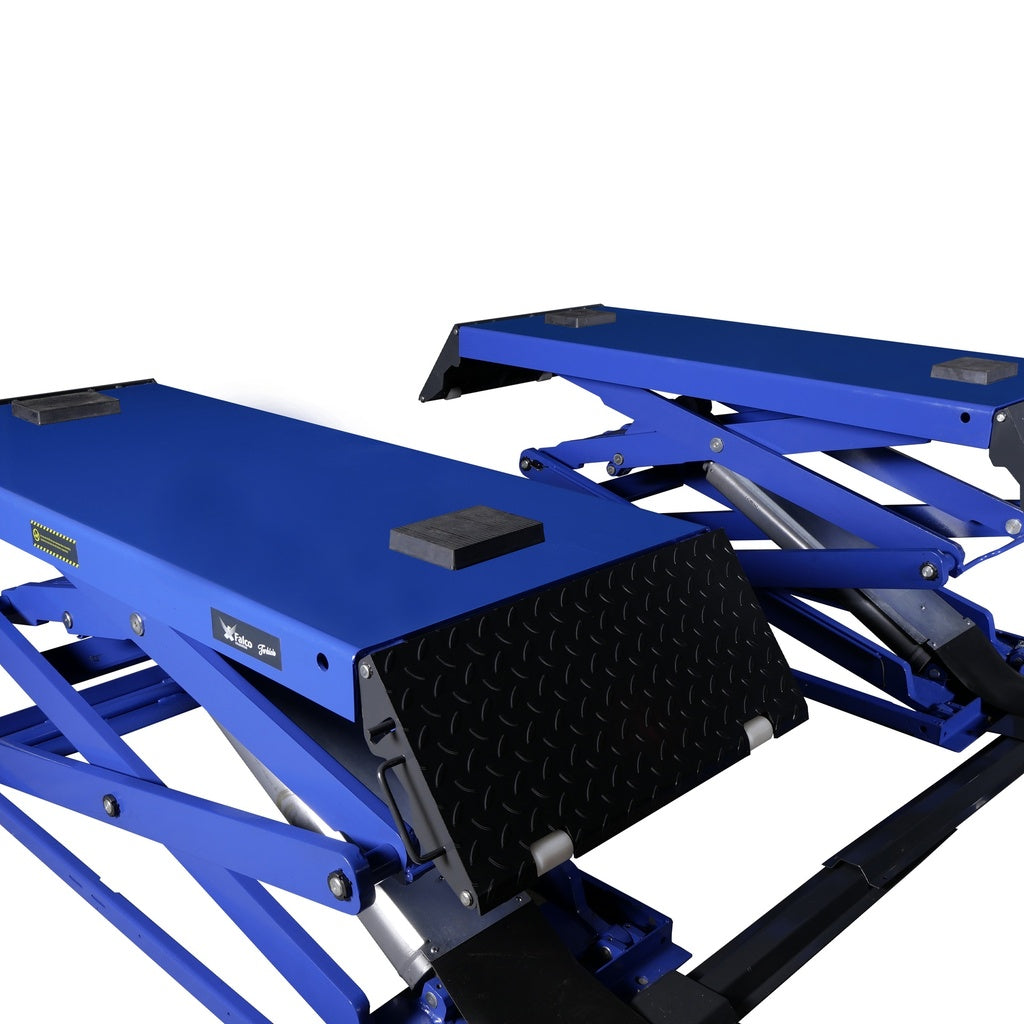

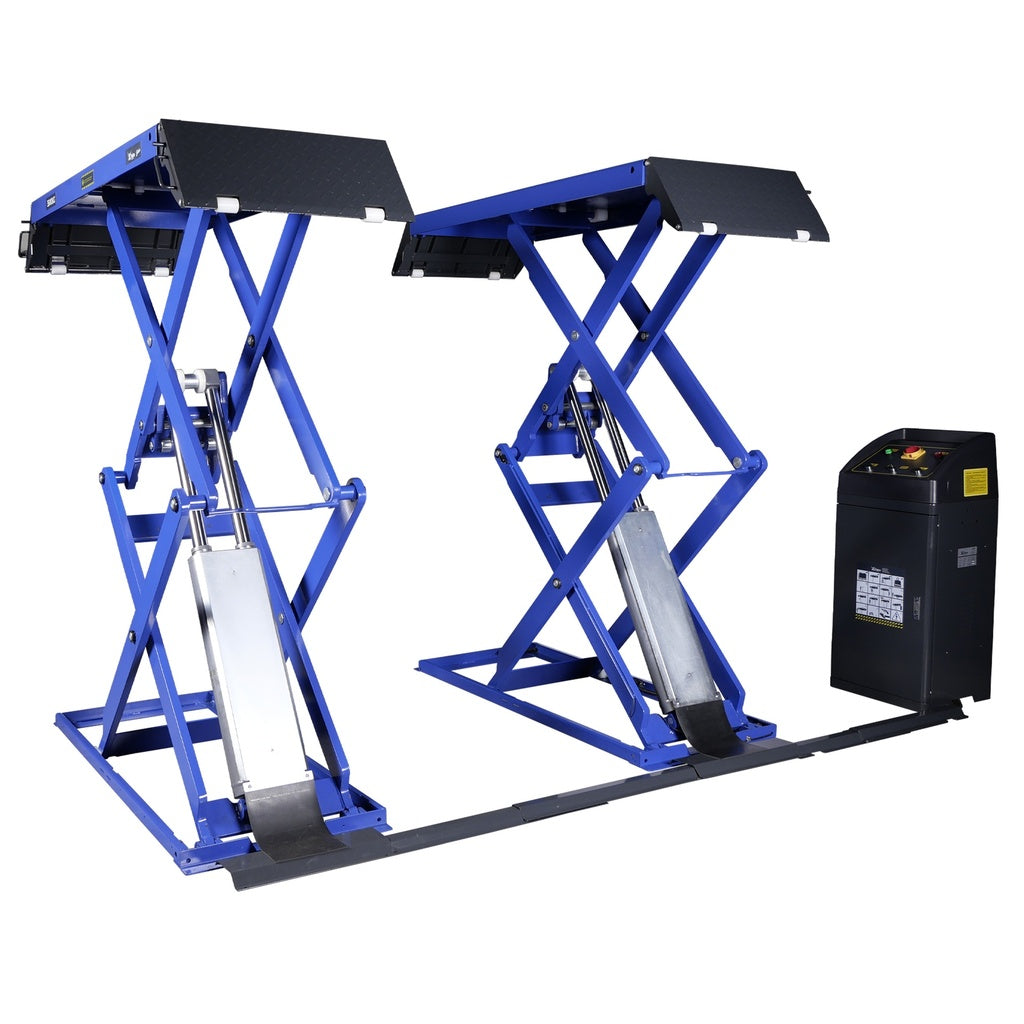

Double scissor lift master-slave 3500kg 400V

double scissor bridge / car lift / car lift bridge / car scissor bridge / ASLP car scissor bridge low profile / fully automatic double scissor lift / scissor bridge / scissor lift bridge / scissor lift

This Falco Sollevatori double scissor lift is of high quality and ideal for professional use. At Falco lift bridges, quality and finish come first.

Equipped with no fewer than four hydraulic cylinders (two per platform), this ASLP lift has a master-slave lifting system. This means that the bridge is safe in every position and does not have to be lowered before work can be carried out on the car. It is also not necessary to first raise the bridge to release it from the lock, making the bridge much more convenient to use and suitable for more applications than mechanically locked bridges.

Thanks to its robust construction and well-thought-out design, this double scissor bridge is equipped with the following useful features as standard:

• Total platform length of 2042mm
• Master-slave system, hydraulic synchronization
• Electric hydraulic double trans pump

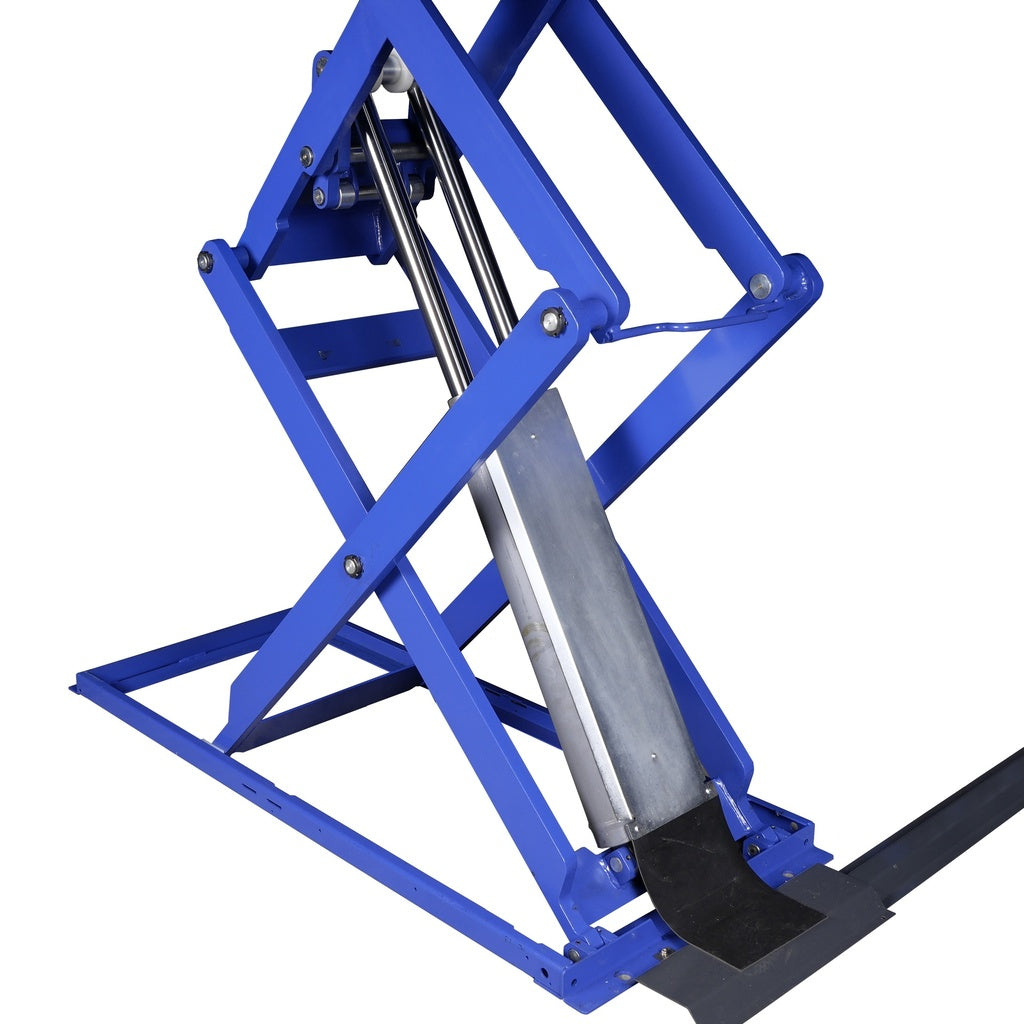

• Equipped with four hydraulic cylinders
• Automatic venting function
• Photocell for safety and platform synchronization

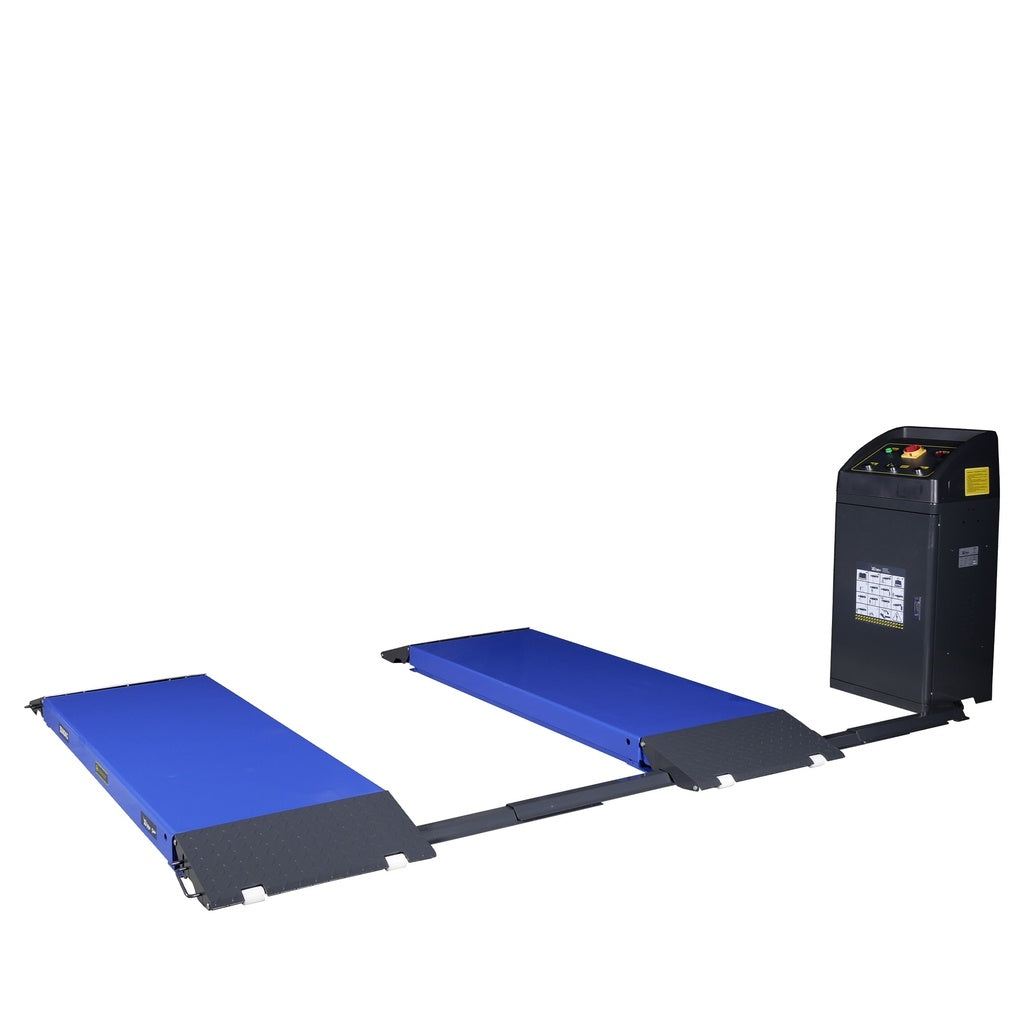

• Low minimum lifting height of 110mm
• Automatic synchronization by means of electric solenoid valves
• Automatic overload protection
• Control valve for controlling the speed when descending
• Limit sensors for limiting the maximum lifting height and the minimum safety height
• Dead man's operation for lifting and lowering
• Foot protection incl. acoustic security signal
• Supplied incl. 4 pcs 25mm rubber recording blocks and 4 pcs 65mm rubber recording blocks
• Dutch manual incl. maintenance protocol and CE certificate 2006/42/EC
• Complies with the NEN-EN1493 safety standard
