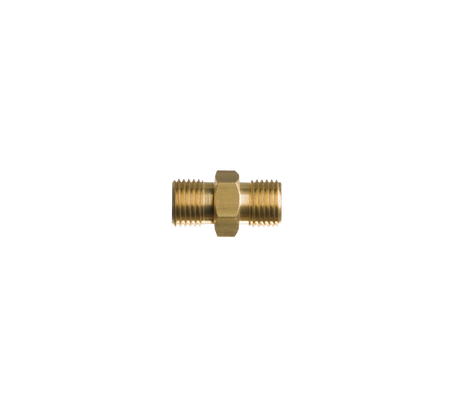

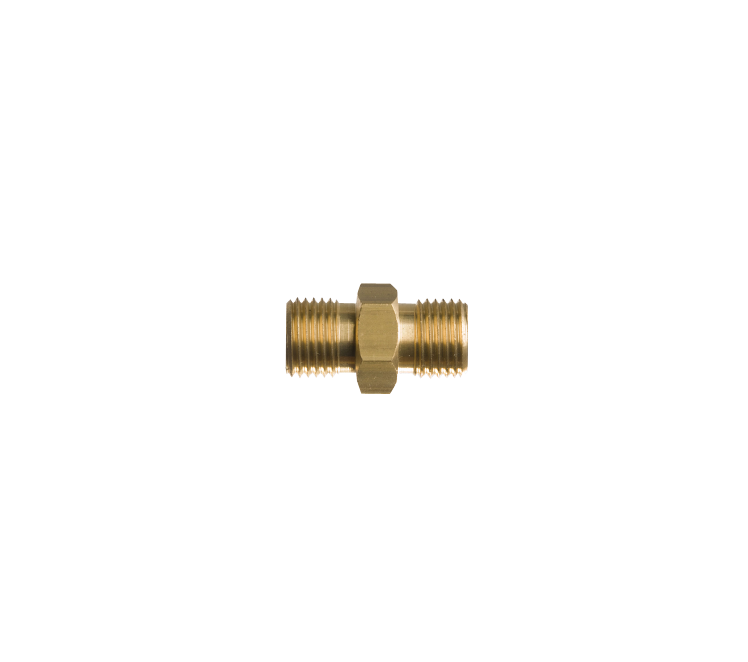

Double nipple 2x 9/16 r UNF ext. hollow
Regular price
€6,51
Double nipple 2x 9/16 r UNF ext. hollow
| Article number | 913160 |
| Product name | Double nipple 9/16"rx 9/16"r unf |
| Kind | external x external |
| Type | 0 |
| Description | This double nipple has an external thread on both sides with a hollow cone as a seal for a hose tail. The 9/16" thread is UNF thread and has a length of ... mm. You can use this double nipple up to a pressure of 40 bar. |
| Weight | 30 grams |
| Height | SW 17mm |
| Length | 31mm |
| Width | SW 17mm |
| Remark | This double nipple does not comply with the EN 560 standard. The 9/16"r UNF thread is not included in this standard because it is an American thread. The EN 560 standard only lists BSP threads. |
