Productinformatie:

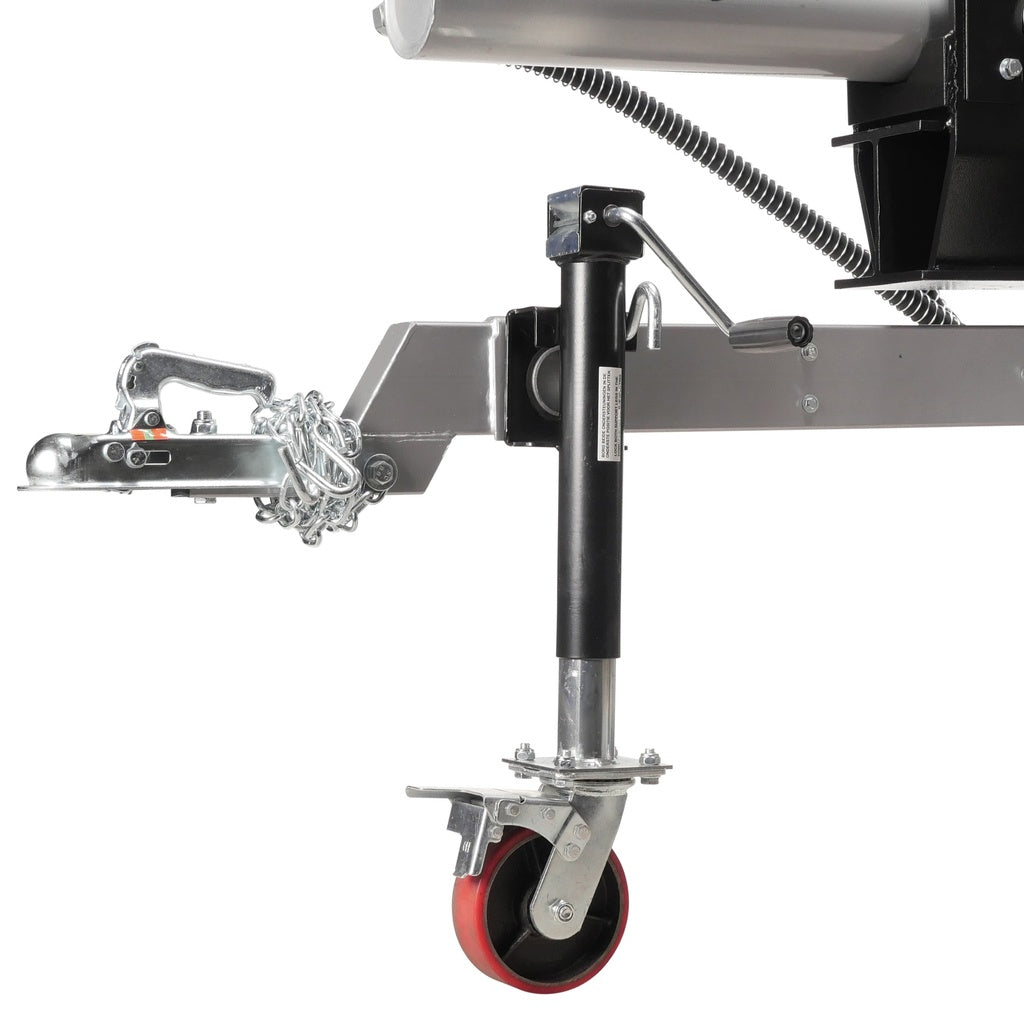

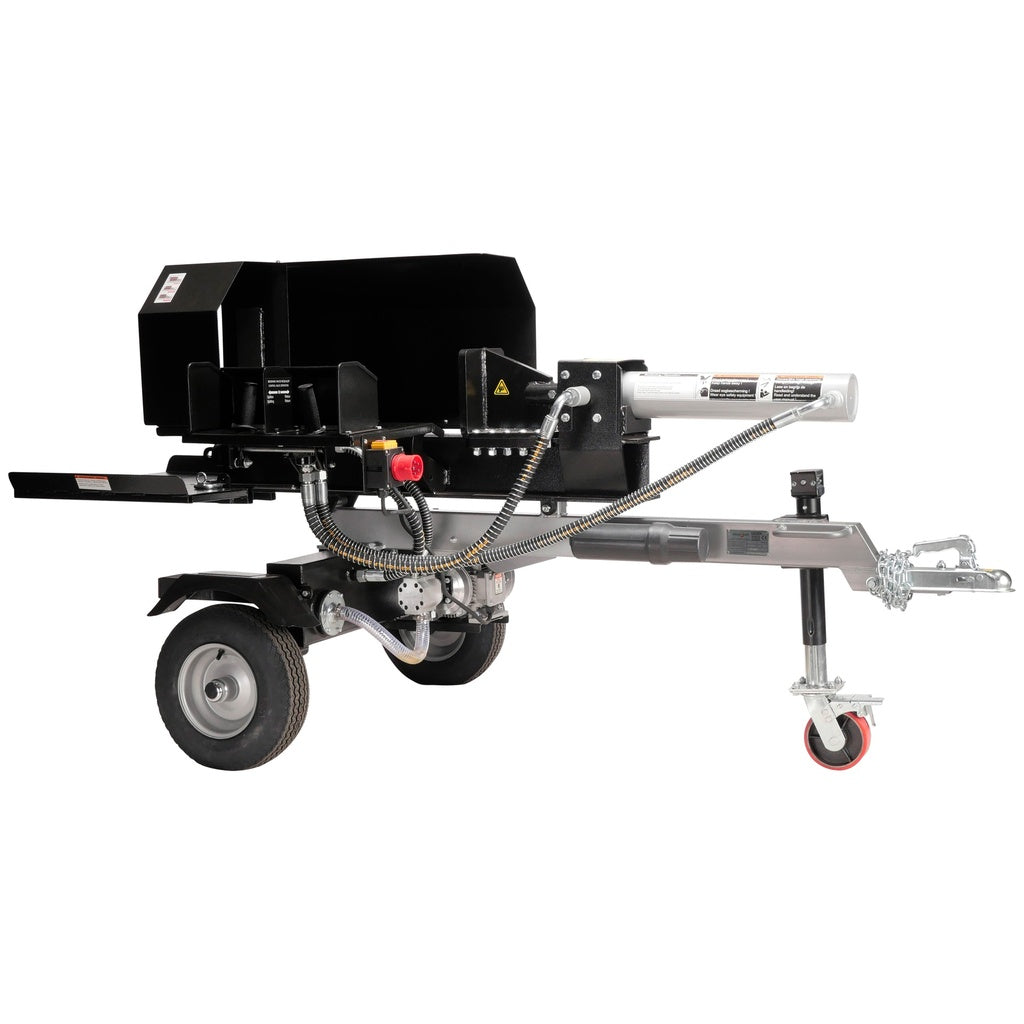

splitter / wood press / logs / electric splitter / horizontal splitter / wood splitter / wood splitter / electric wood splitter This Woodcraft wood splitter is electrically hydraulically driven, making it an economical way to split wood without using fuel. Thanks to the 22 tons of pressing force and the large 43 cm splitting knife, you can easily split logs up to 50 cm in length. The splitter is very mobile and easy to move and adjust in height thanks to the nose wheel. With its foldable collection flap, the split wood is collected and does not lie scattered on the ground. The hydraulic cylinder is mounted on a central mounting shaft that allows the cylinder to move during splitting, reducing the pressure on the cylinder rod. This makes it less sensitive to wear and leaks. This product complies with the latest guidelines 2016/42/EC & Nen standard 609-1/2017. Please note that this log splitter is only intended for horizontal use! Technical specifications:

• Capacity 22 tons
• Cycle time 11s
• Hydraulic reservoir 14.5L
• Required oil 10L
• Max. wood length 55cm
• Hydraulic cylinder 10cm x 51cm
• Max. pressure 25.7Mpa
• Gear pump 53 L/min, 2-stage
• Max. pulling speed 60km
• Wheel size 41cm 4.8x8
• Electric motor 2.2kW, 400V, 2880RPM
