Productinformatie:

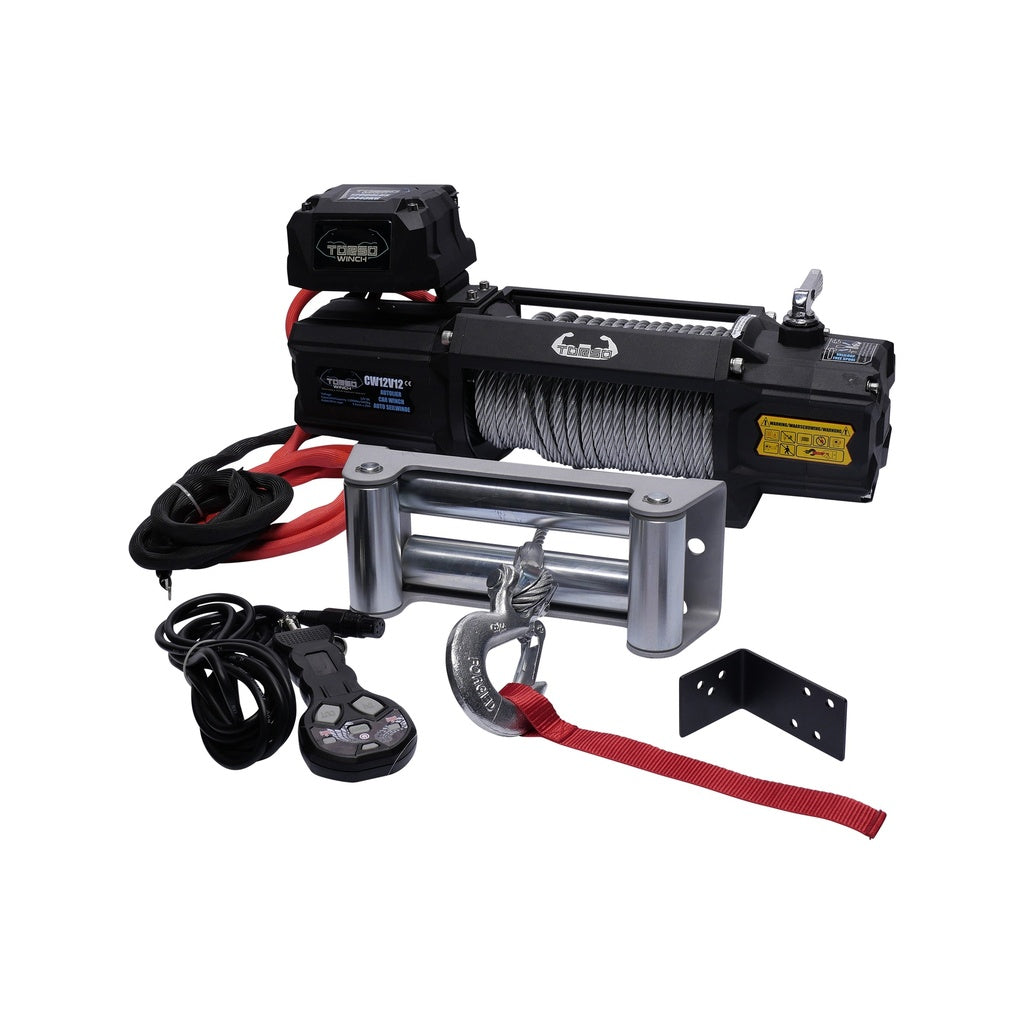

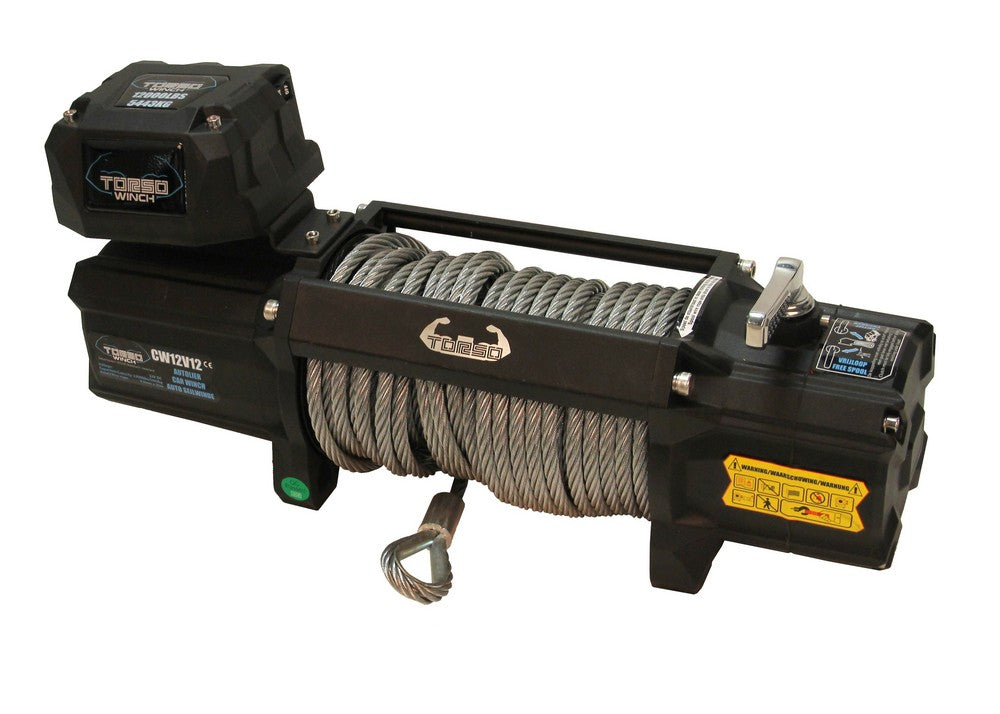

Car winch / bumper winch Torso winch, reliable and robust bumper winches especially for quads/buggies/trailers. The winches are suitable for various applications within pulling and towing work, as long as they fall within the weight class. Torso winches are standard equipped with the following accessories & features:

• 4-way roller window, for excellent cable guidance
• remote control: can be used both with cable and wirelessly
• length of control cable = 3.8m
• range wireless control = 65m
• battery operation = L1028F, not rechargeable
• mounting hook incl. lip
• 1.8m connection cable for the battery
• manual freewheel
• automatic brake in the event of a power failure
• 1.5 ton pulley

Optional mounting plate, ensuring correct mounting of the winch. The tensile force stated is an approximation, the actual load depends on the surface, slope, weather conditions and rolling weight. Technical specifications:

• 12V single line
• pulling force = 5443kg
• reduction = 265:1
• series wound motor = 12V 6HP
• drum size = 63 x 226mm
• cable length = 25m
• cable diameter = 9.5mm
• pulling force = 0kg, 1814kg, 2722kg, 4536kg, 5443kg
• line speed = 6.8mpm, 3.8mpm, 3mpm, 2.1mpm, 1.7mpm
• amp pull = 80A, 170A, 210A, 310A, 360A
• layers of the cable = 1, 2, 3, 4
• tensile force per layer = 5443kg, 4490kg, 3765kg, 3175kg
• cable length per meter = 6m, 13m, 22m, 25m
• mounting dimensions center to center = 255 x 115mm
