Productinformatie:

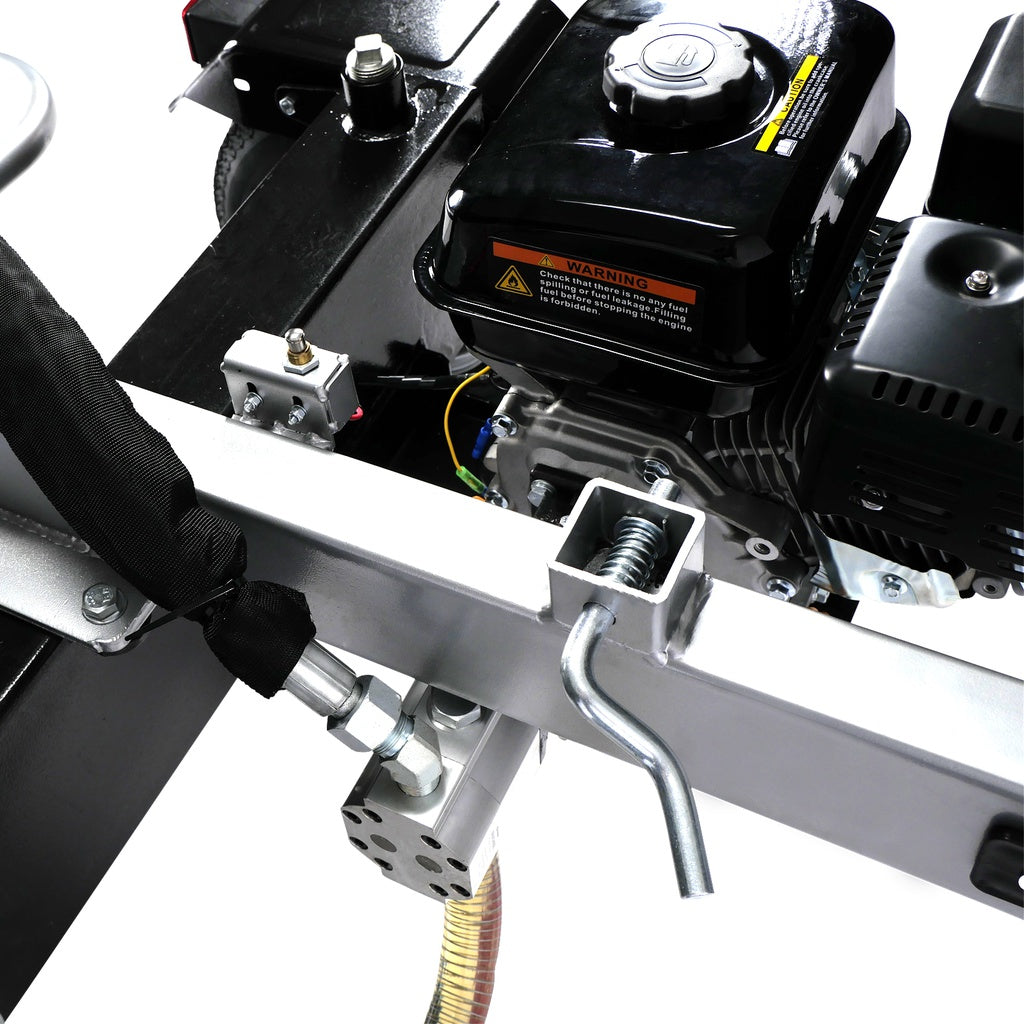

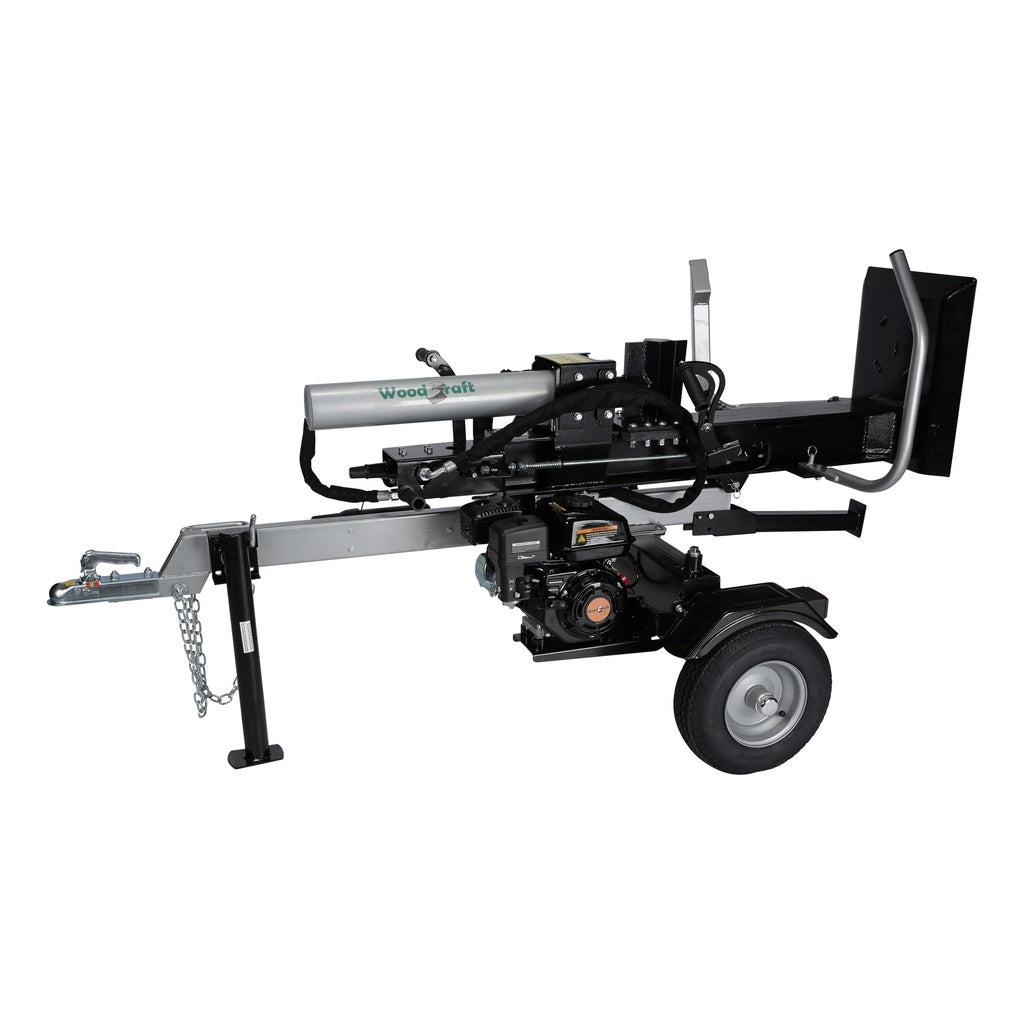

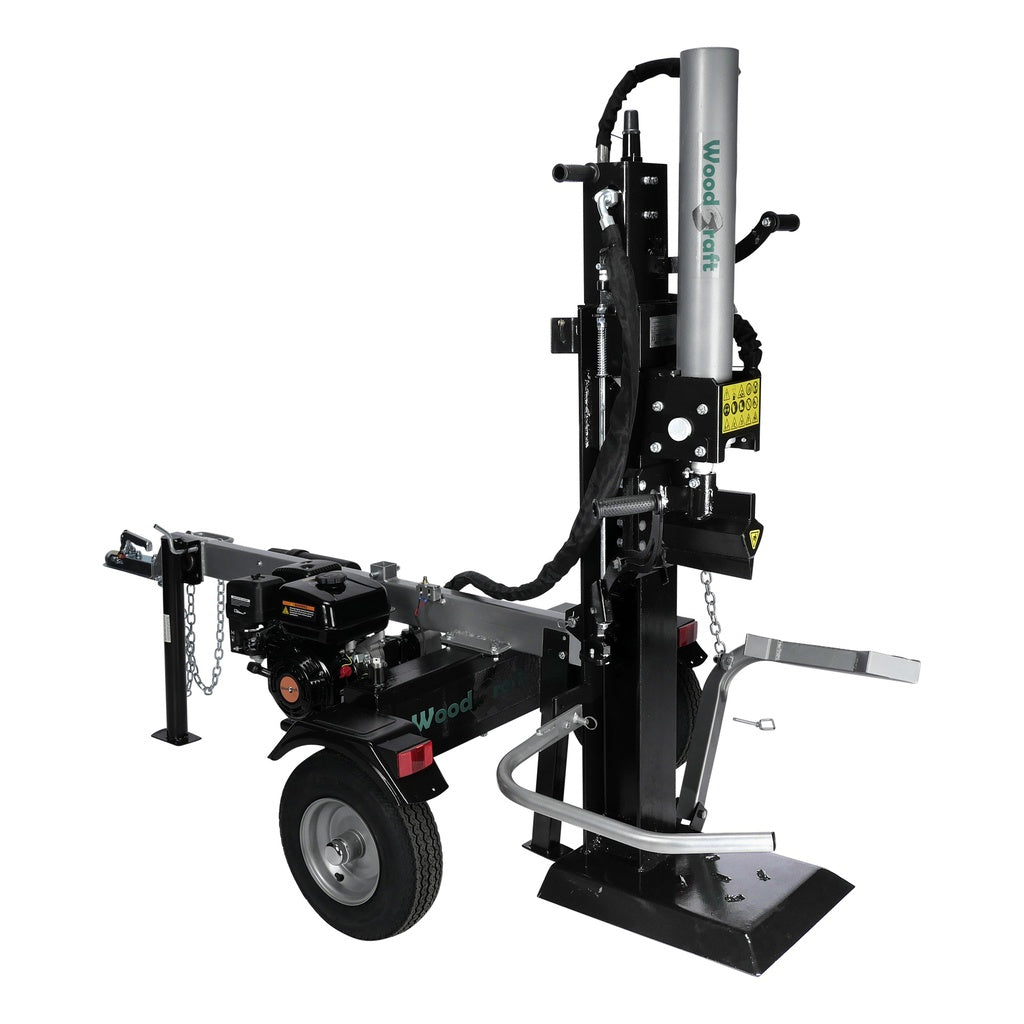

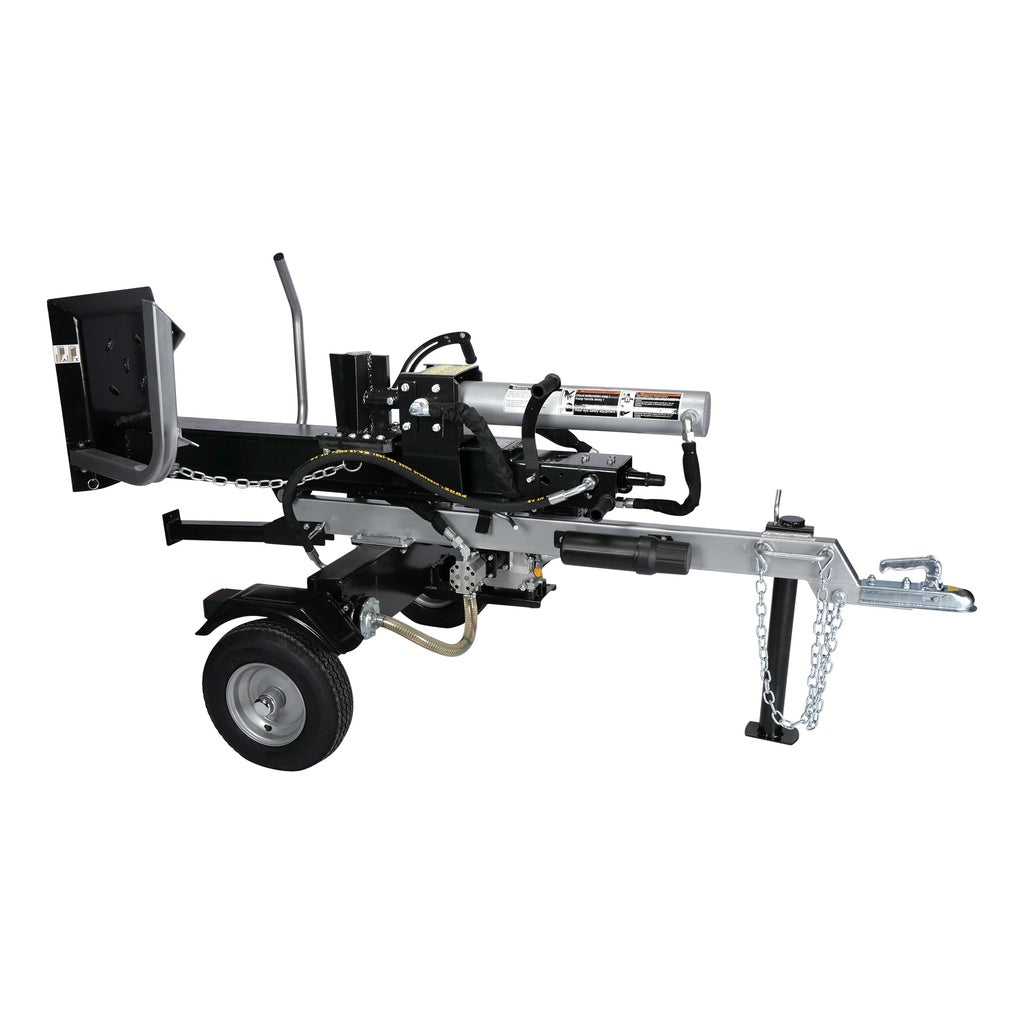

splitter / wood press / petrol splitter / horizontal splitter / wood splitter / wood splitter This petrol engine powered wood splitter from Woodcraft does not require a steam network thanks to its petrol engine and can therefore be used anywhere. Thanks to the 22 tons of pressing force and the large splitting knife, you can easily split logs up to 60 cm in length. The splitter is very mobile and equipped with 2 sturdy support legs for extra stability. The hydraulic cylinder is mounted on a dowel pin that allows the cylinder to slide during splitting, reducing pressure on the cylinder rod. This makes it less sensitive to wear and leaks. This product complies with the new Nen standard 609-1/2017. !Please note that this log splitter is only intended for vertical use!

Technical specifications:

• capacity = 22 tons
• cycle = 12.5 sec
• hydraulic oil capacity = 24.6L (not included!)
• max. diameter of wood = 34.8 x 61cm
• max. pressure = 248 bar (3600 psi)
• max. pump flow = 11gpm / 41.5L/min
• wheel size = 16''
• engine type = YM168F19
• engine power = 6.5hp (196cc) / 3600rpm
• equipped with non-return valve
• splitting knife = 175mm hardened steel
• max. towing speed = 72km/h
