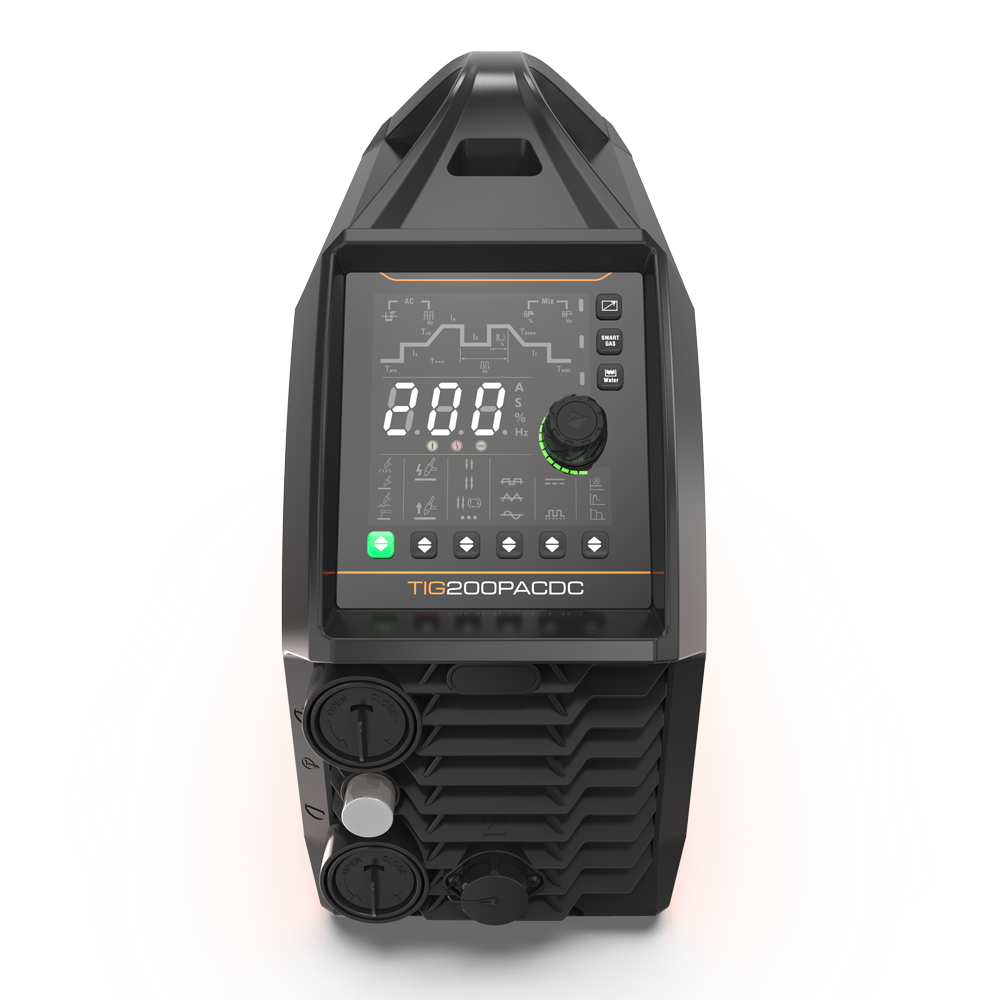

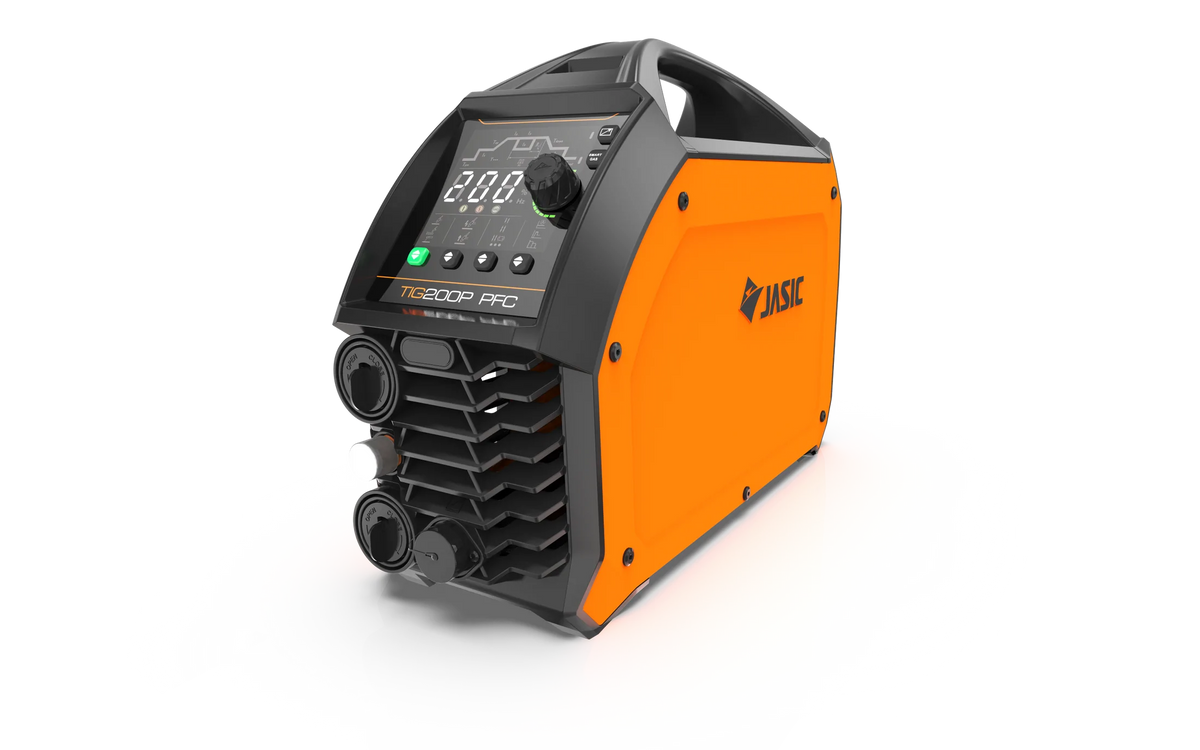

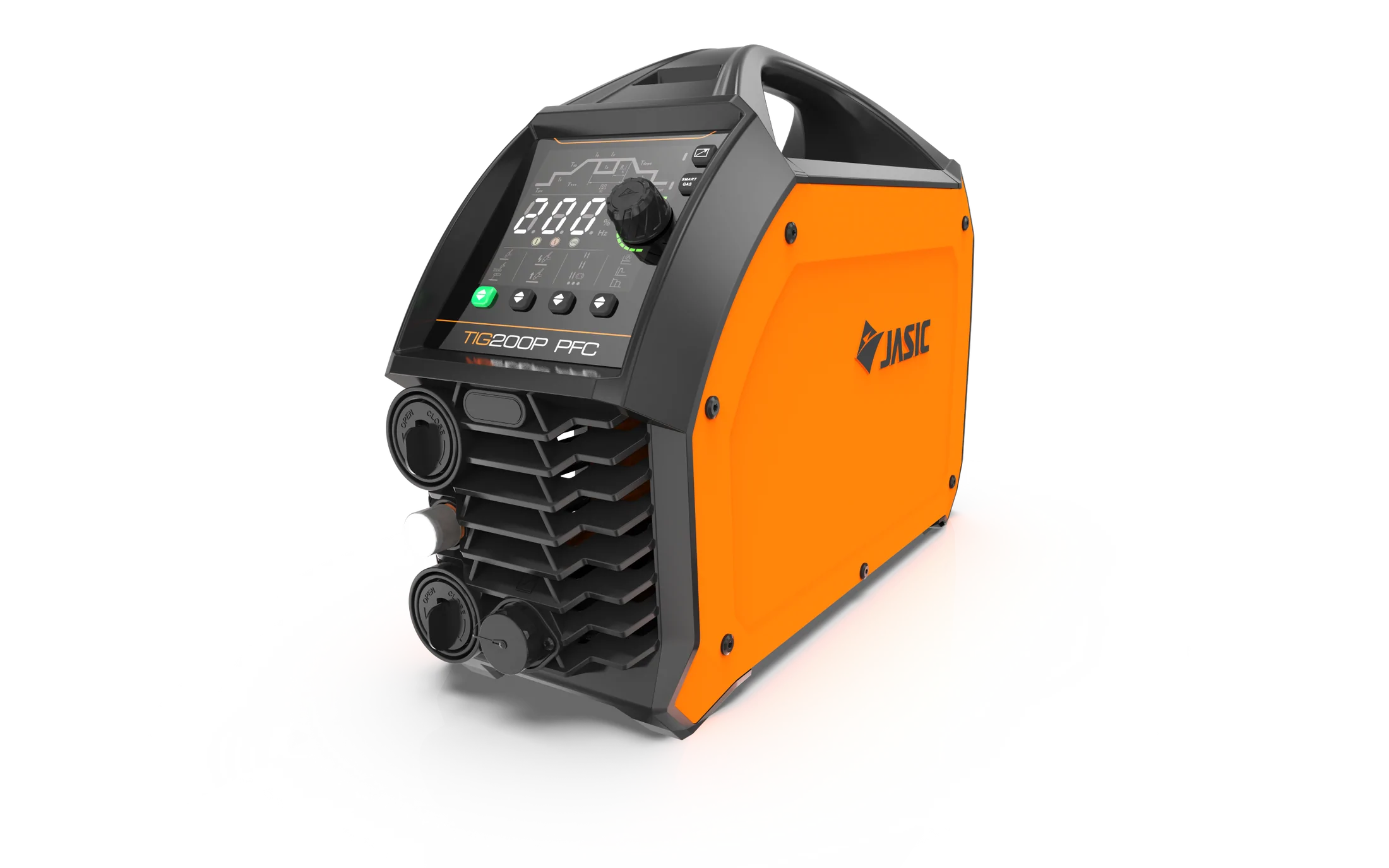

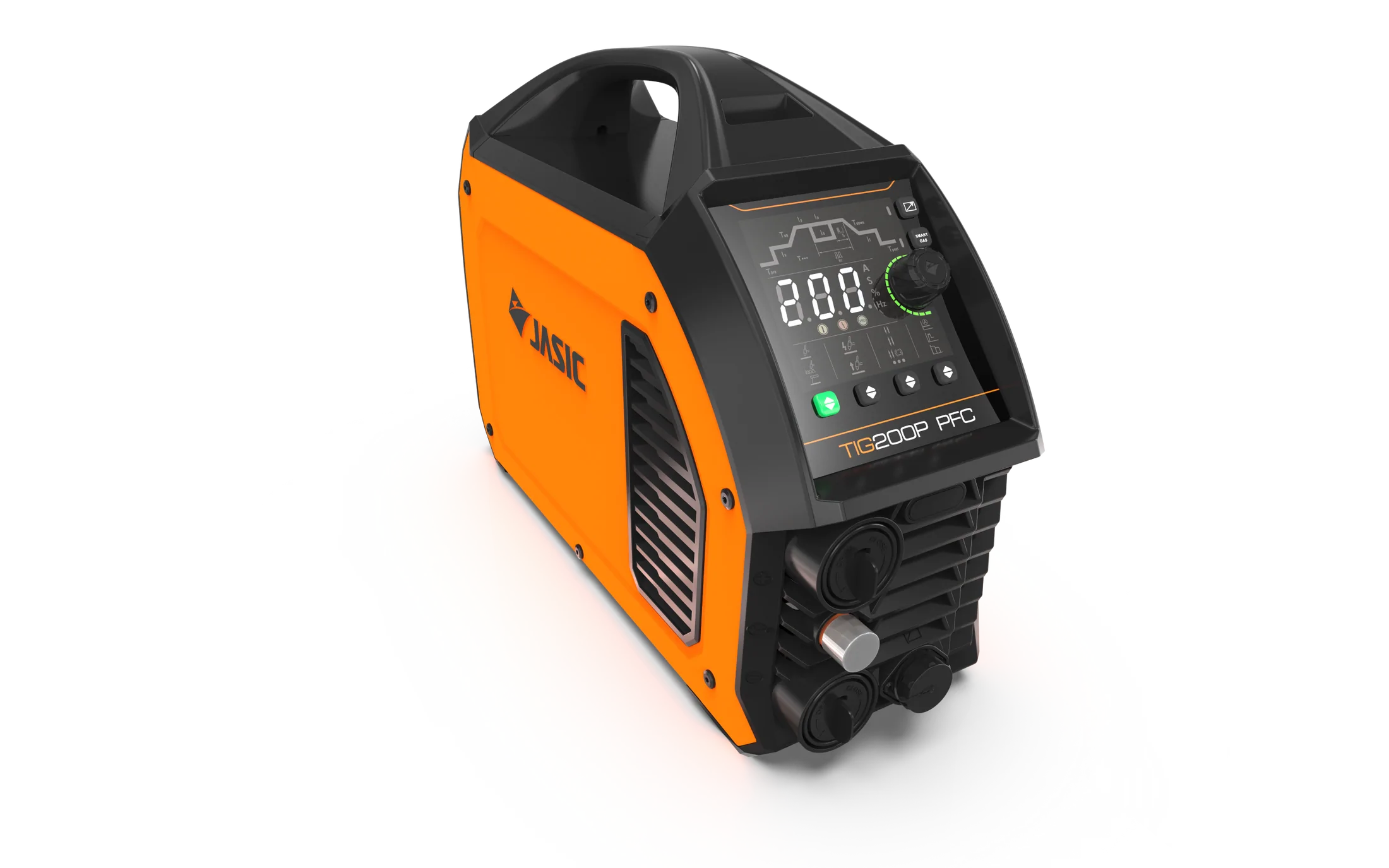

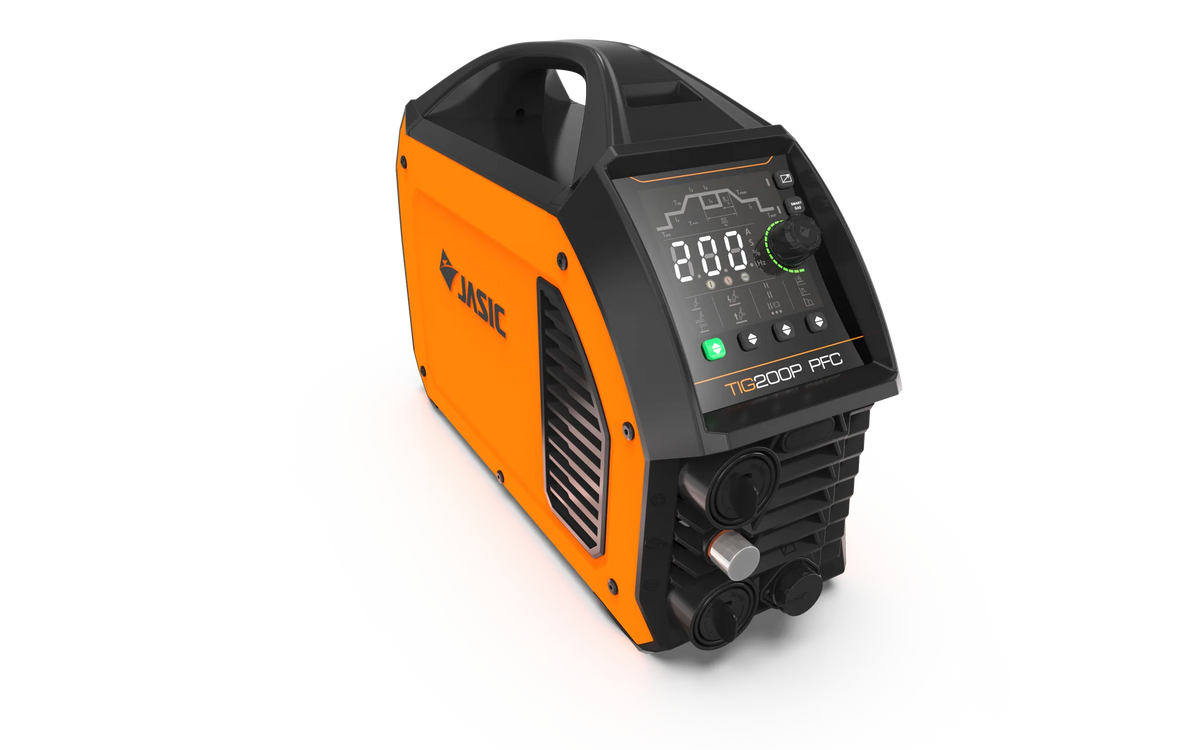

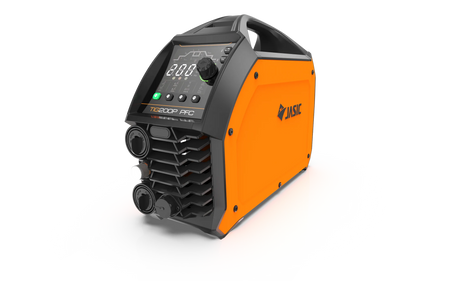

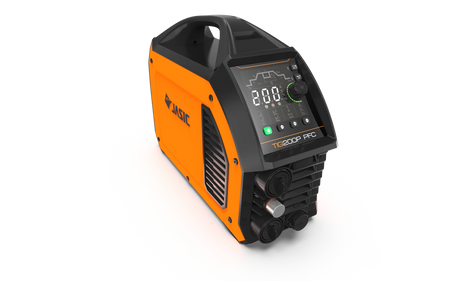

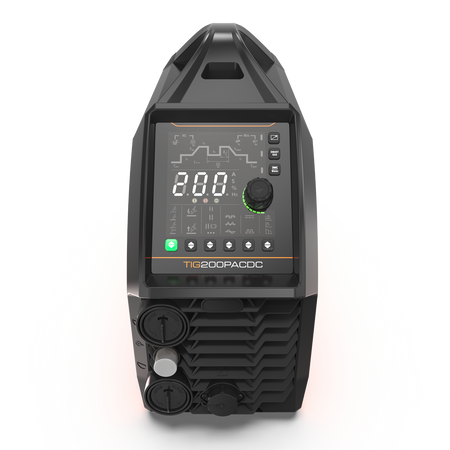

Jasic EVO TIG200P PFC AC/DC - alternating current & direct current

In stock - 10 items available
SKU: ZXET-200PACDC
Regular price €1.370,00

Jasic EVO TIG200P PFC DC - direct current

Current stock: {{ variant.inventory_quantity }} piece(s) immediately available!

The Jasic EVO TIG200P PFC AC/DC water-cooled welding machine is a device that can supply both alternating current (AC) and direct current (DC) for welding metals. It is a TIG welding machine, which means that it uses an arc welding process where a non-consumable electrode is used to weld the metal.

This particular welding machine has a power factor correction (PFC), which means it uses the power supply more efficiently and uses less energy than machines without PFC. The water cooling system ensures that the machine does not overheat during use, which ensures a longer machine life and better welding performance.

With the ability to supply both AC and DC power, this welding machine can be used to weld various types of metals, including aluminum, steel, copper, and more. The user can adjust the welding parameters to suit the specific task being performed, ensuring a more accurate and efficient weld.

Most important features

  • Robust, rugged and industrial look with ergonomic design
  • ClearVision technology
  • HF start
  • Adjustable wide voltage range
  • Dash Arc
  • Smart Lift TIG
  • Fully equipped TIG parameters
  • Flexible remote control solutions
  • Power factor correction (PFC), generator friendly
  • Quick Factory Reset; automatic sleep mode
  • ABAP: Active balancing air passage
  • Smart gas for optimized gas consumption
  • Fan on request
  • Voltage reduction device (VRD)
  • Protection of the most important power electronics components
  • Protection against overcurrent and overheating

Specification

ET-200PACDC

TIG200p AcDc PFC |

Input power

AC95-265V 50/60 Hz

Alternating voltage 115V

AC VOLTAGE 230V

Open circuit overvoltage

65V





TIG

Nominal input current

32.2A

21.1A

Rated input power

3.5kVA

4.7kVA

Output current range

dc: 5-160A ac: 20-160a

dc: 5-200A ac: 20-200A

Nominal duty cycle

25%



MMA

Nominal input current

34.1A

22.7A

Rated input power

3.9kVA

5.6kVA

Output current range

10-120A

10-160a

Nominal duty cycle

30%

Efficiency

80%

Power factor

0.95

Inactive state power

<50W

Protection class

IP23S

Insulation class

H

Dimensions LxWxH

490 x 165 x 341mm

Net weight

only 11.9 kg

Download hier de handleiding (Indien aanwezig)
