Jasic EVO TIG200P PFC AC/DC water cooled - alternating current & direct current
€2.407,90
incl. BTW
€1.990,00
excl. BTW
€1.990,00
SKU
ZXET-200PACDC-WC
Shipping calculated at checkout.
Productinformatie:

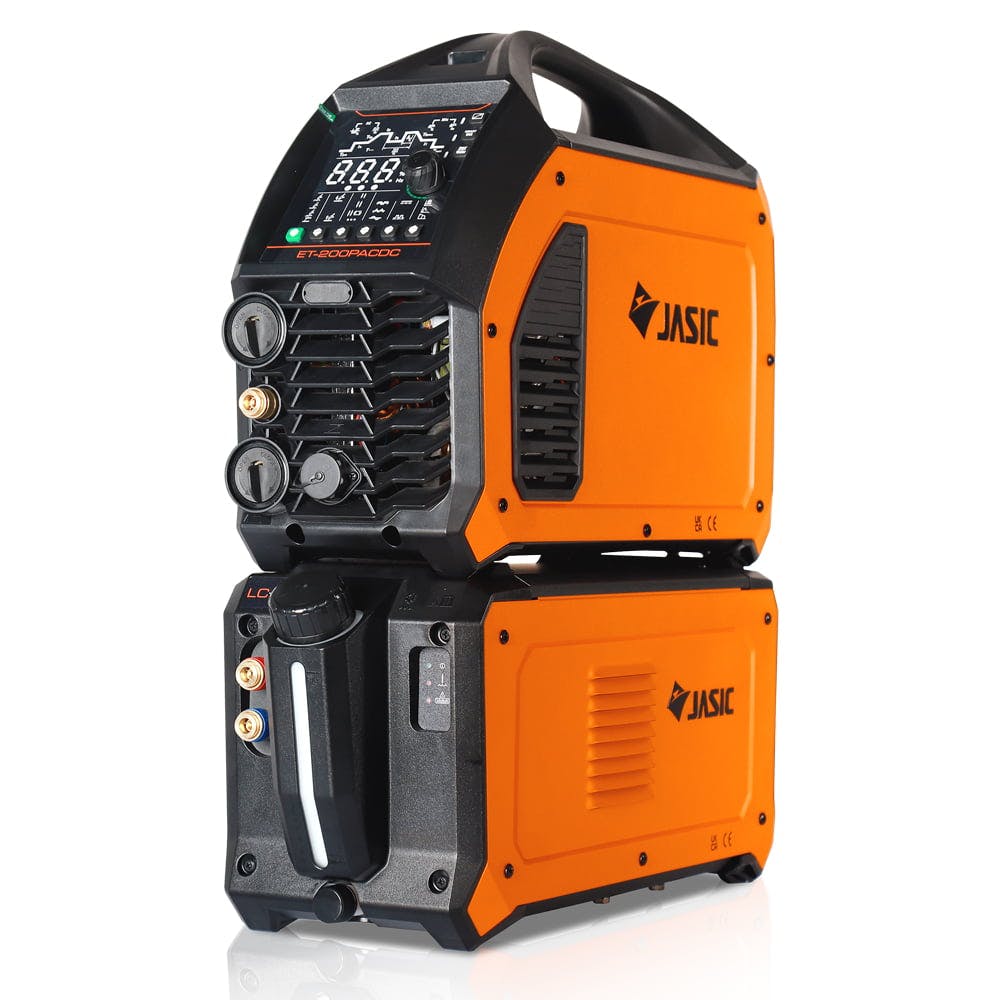

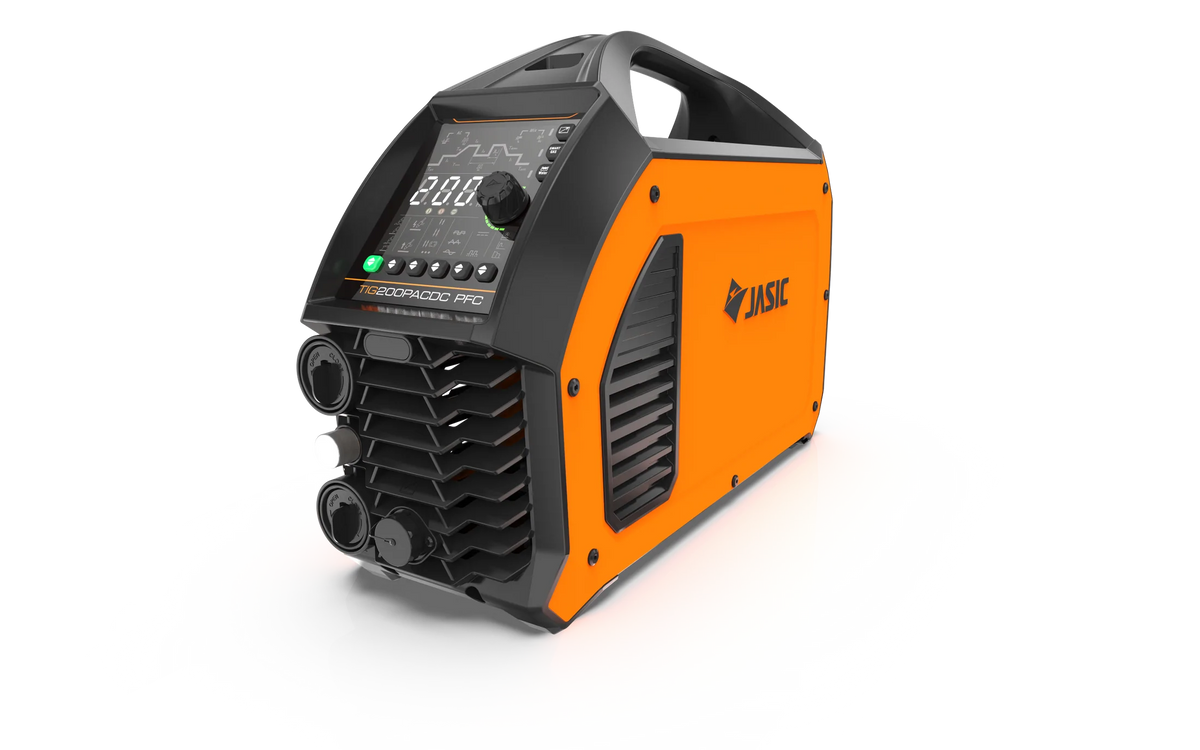

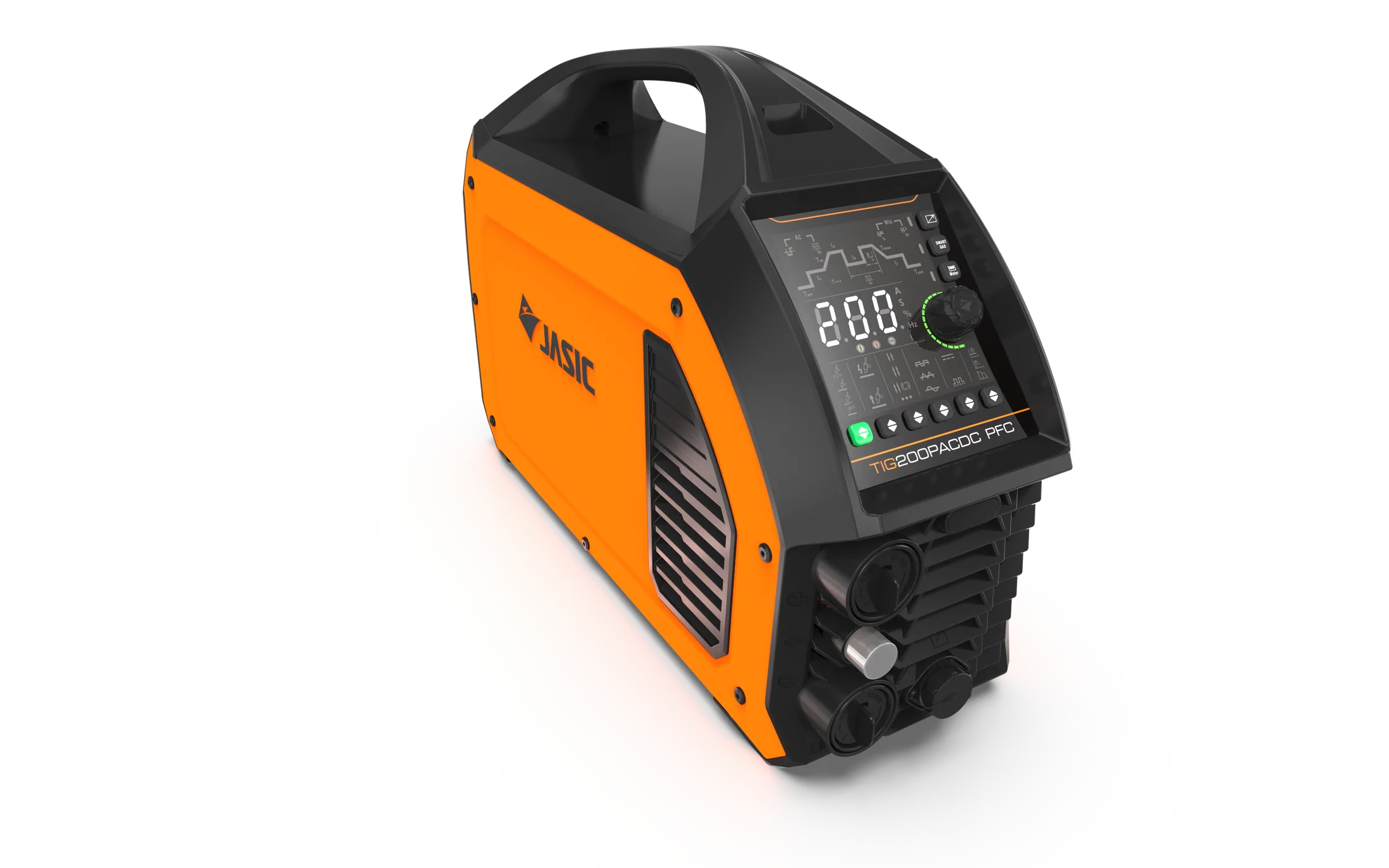

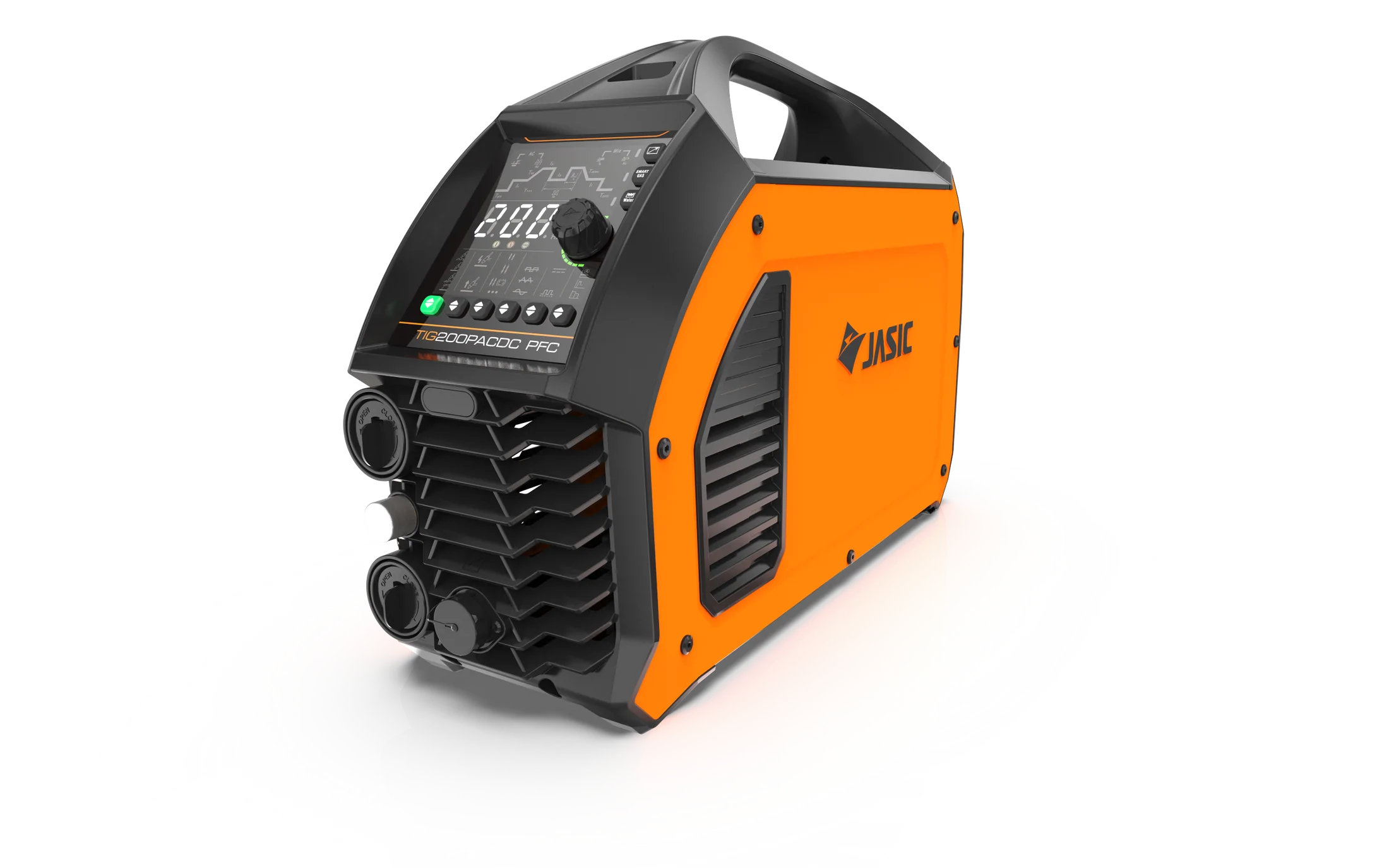

Jasic EVO TIG200P PFC AC/DC water cooled - alternating current & direct current
Current stock: 5 piece(s) immediately available!
Jasic EVO TIG200P PFC AC/DC water-cooled is a type of welding machine designed for TIG (Tungsten Inert Gas) welding. The machine can weld various metals, including stainless steel, aluminum and copper.
The machine is equipped with PFC (Power Factor Correction) technology, which helps to improve the energy efficiency of the machine. This results in lower energy consumption and lower operating costs.

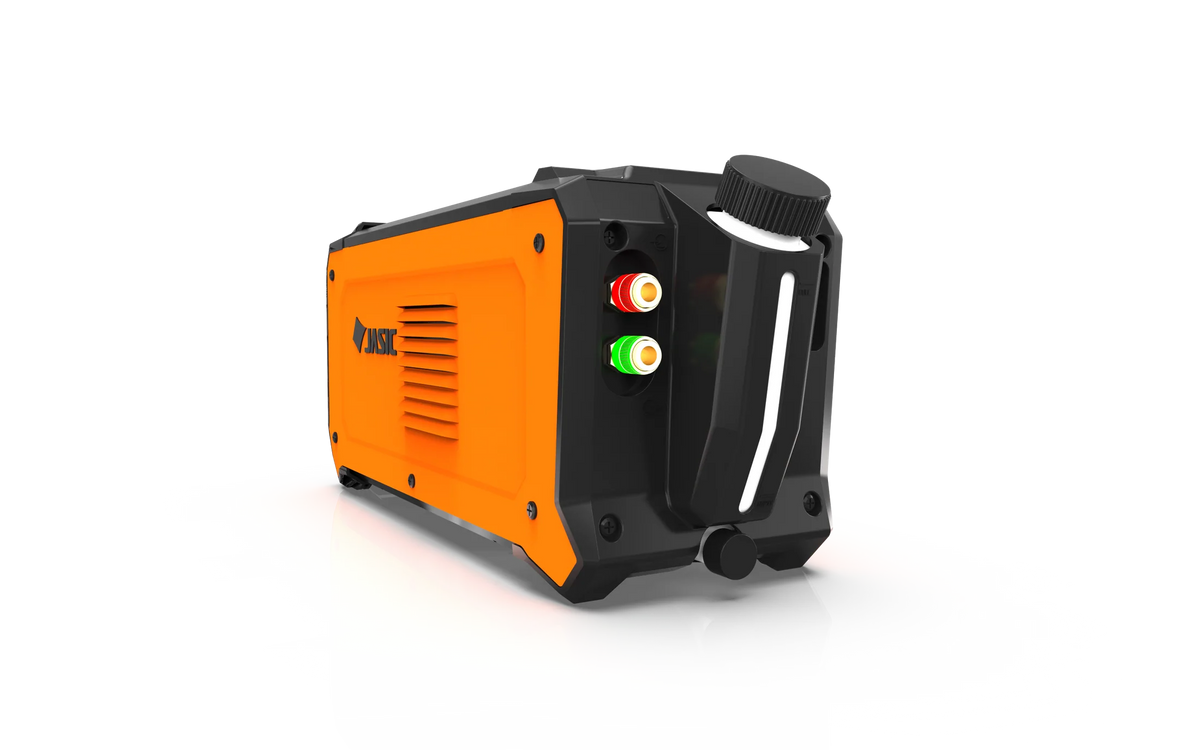

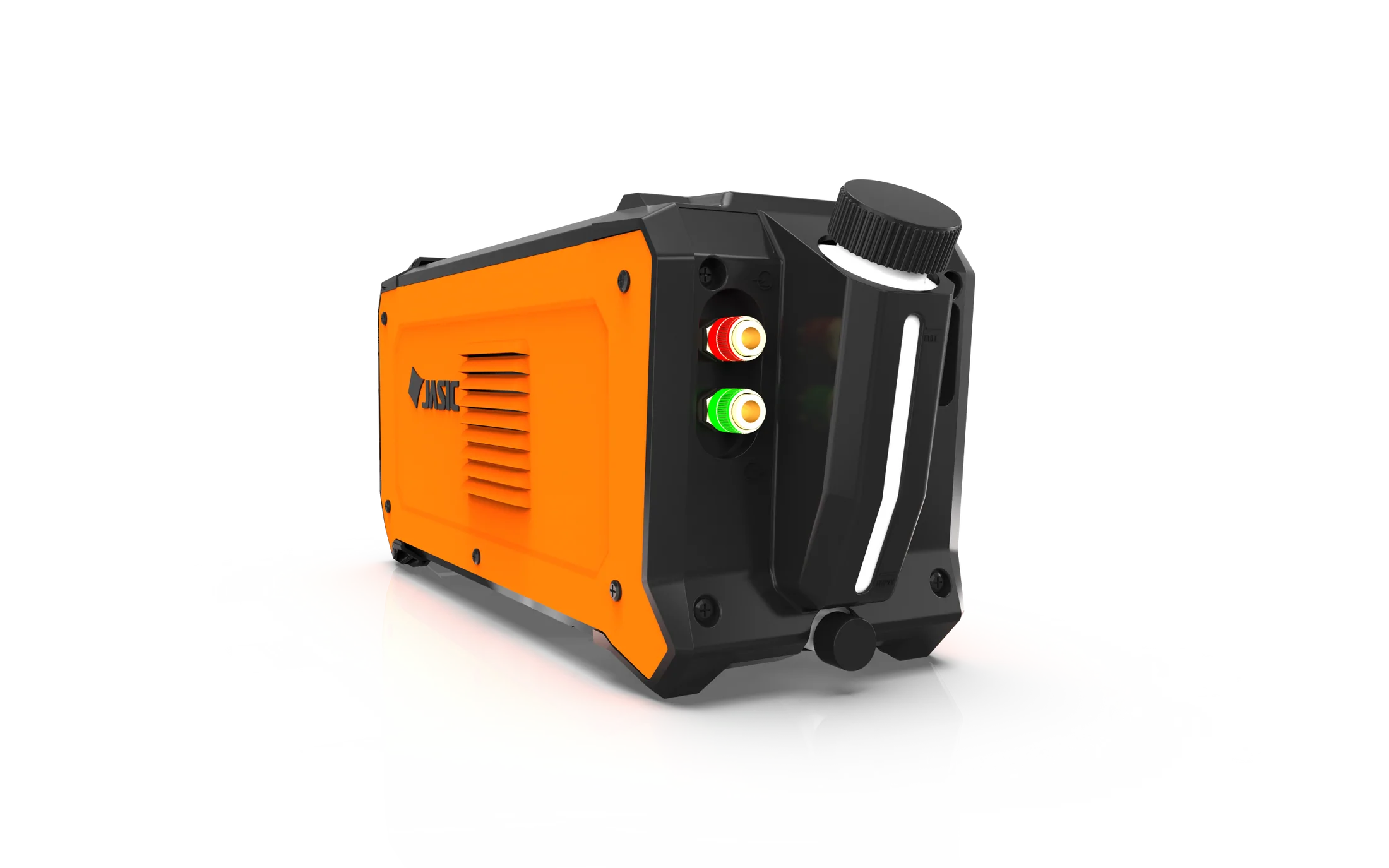

The Jasic EVO TIG200P PFC AC/DC water cooled is also designed with an AC/DC power source, allowing the user to weld both aluminum and steel. The water cooling system helps regulate the temperature of the machine, preventing overheating during extended use.
All in all, the Jasic EVO TIG200P PFC AC/DC water-cooled is a powerful welding machine designed for professionals who need a reliable and versatile machine for TIG welding of various metals.
Most important features
- Robust, rugged and industrial look with ergonomic design
- ClearVision technology
- Adjustable wide voltage range
- HF stabilizing technology
- Dash Arc
- Smart Lift TIG

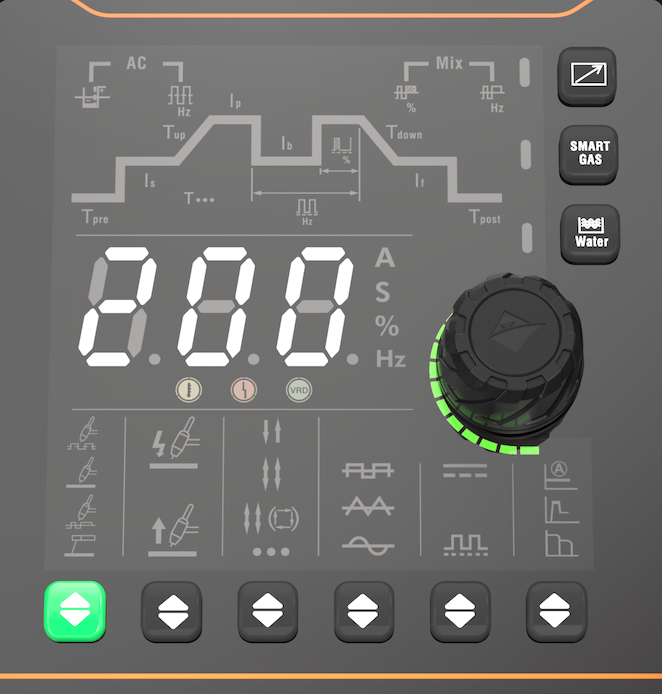

- Fully equipped pulse TIG parameters
- Multiple AC waveforms
- Mixed waveform, mixed waveform frequency, mixed waveform duty cycle
- Flexible remote control solutions
- Power factor correction (PFC), generator friendly
- Quick Factory Reset; automatic sleep mode
- Water-cooled option available
- ABAP: Active balancing air passage
- Smart gas for optimized gas consumption
- Fan on request
- Voltage reduction device (VRD)
- Protection of the most important power electronics components
- Protection against overcurrent and overheating
Specification
|
ET-200PACDC |
TIG200p Acdc PFC | |
||
|
Input power |
AC95-265V 50/60 Hz |
||
|
Alternating voltage 115V |
AC VOLTAGE 230V |
||
|
Open circuit overvoltage |
65V |
||
|
TIG |
Nominal input current |
32.2A |
21.1A |
|
Rated input power |
3.5kVA |
4.7kVA |
|
|
Output current range |
dc: 5-160A ac: 20-160a |
dc: 5-200A ac: 20-200A |
|
|
Nominal duty cycle |
25% |
||
|
MMA |
Nominal input current |
34.1A |
22.7A |
|
Rated input power |
3.9kVA |
5.6kVA |
|
|
Output current range |
10-120A |
10-160a |
|
|
Nominal duty cycle |
30% |
||
|
Efficiency |
80% |
||
|
Power factor |
0.95 |
||
|
Inactive state power |
<50W |
||
|
Protection class |
IP23S |
||
|
Insulation class |
H |
||
|
Dimensions LxWxH |
490 x 165 x 341mm |
||
|
Net weight |
only 11.9 kg |
||
