Welding roller rack 3000kg

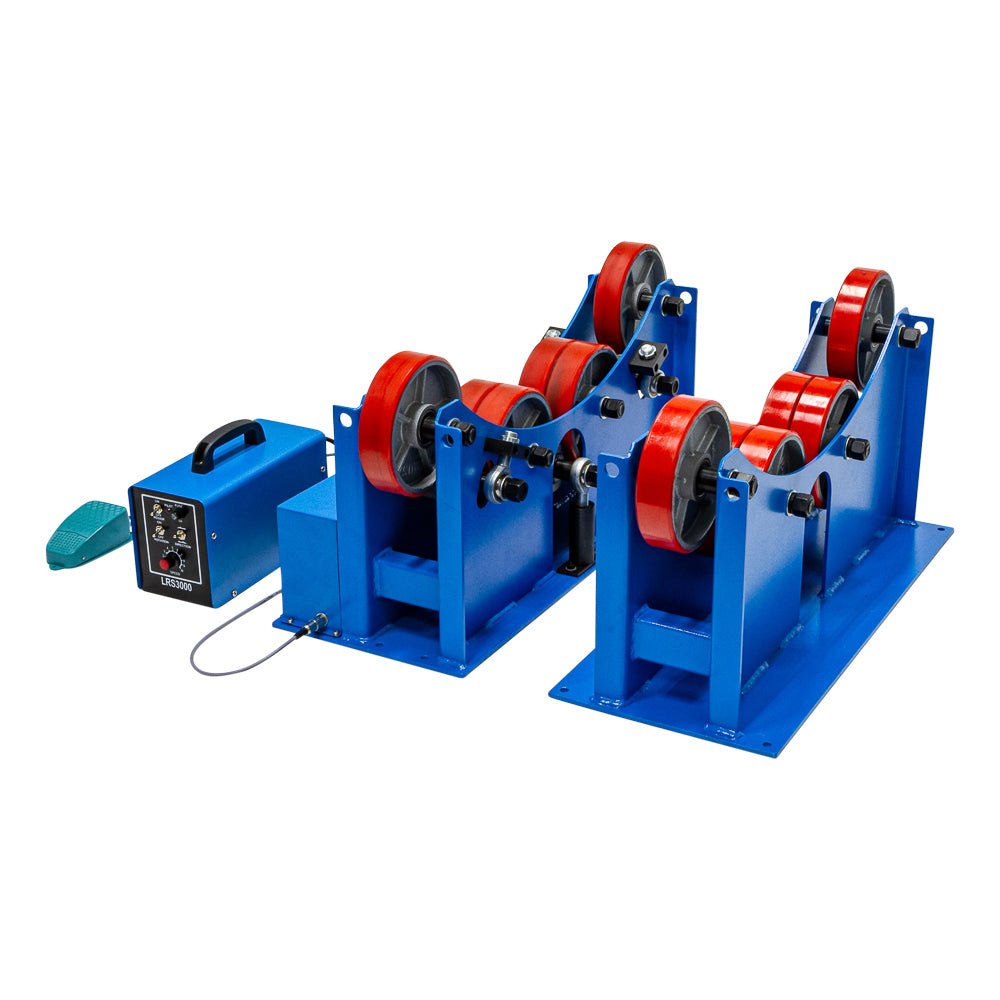

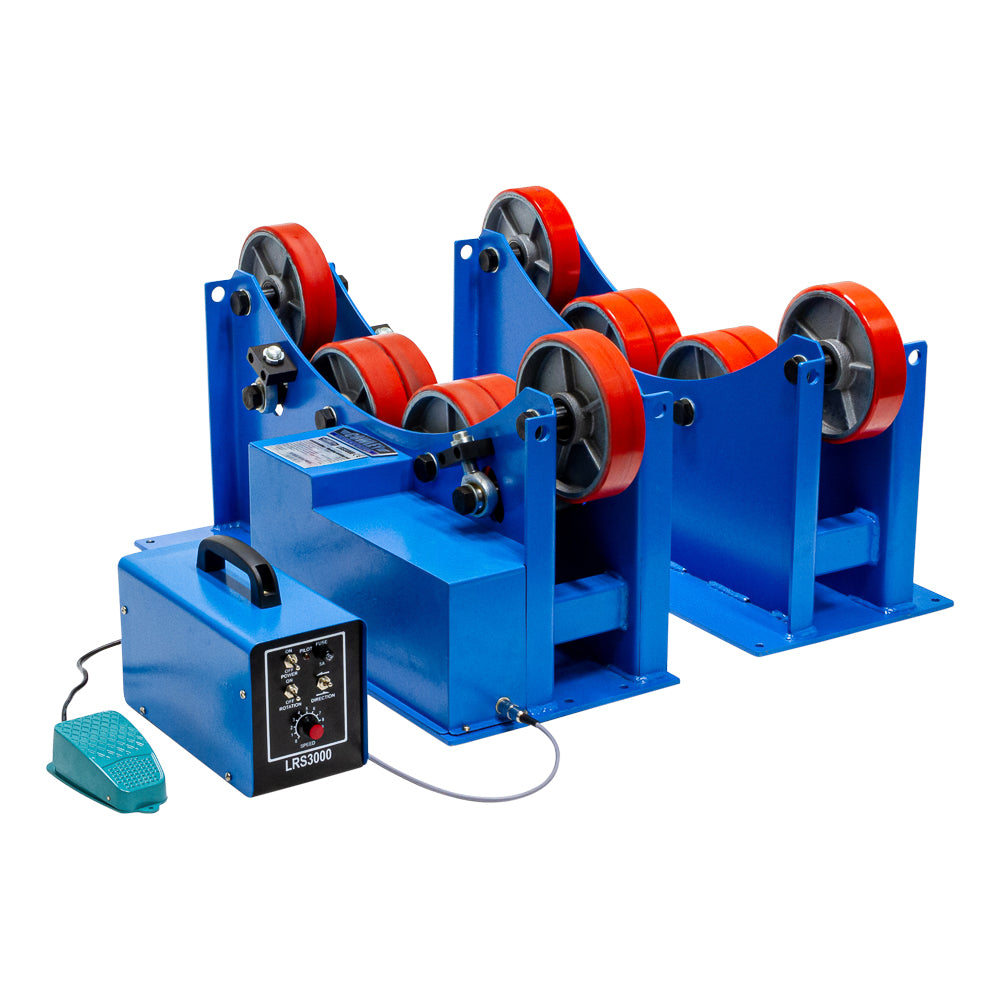

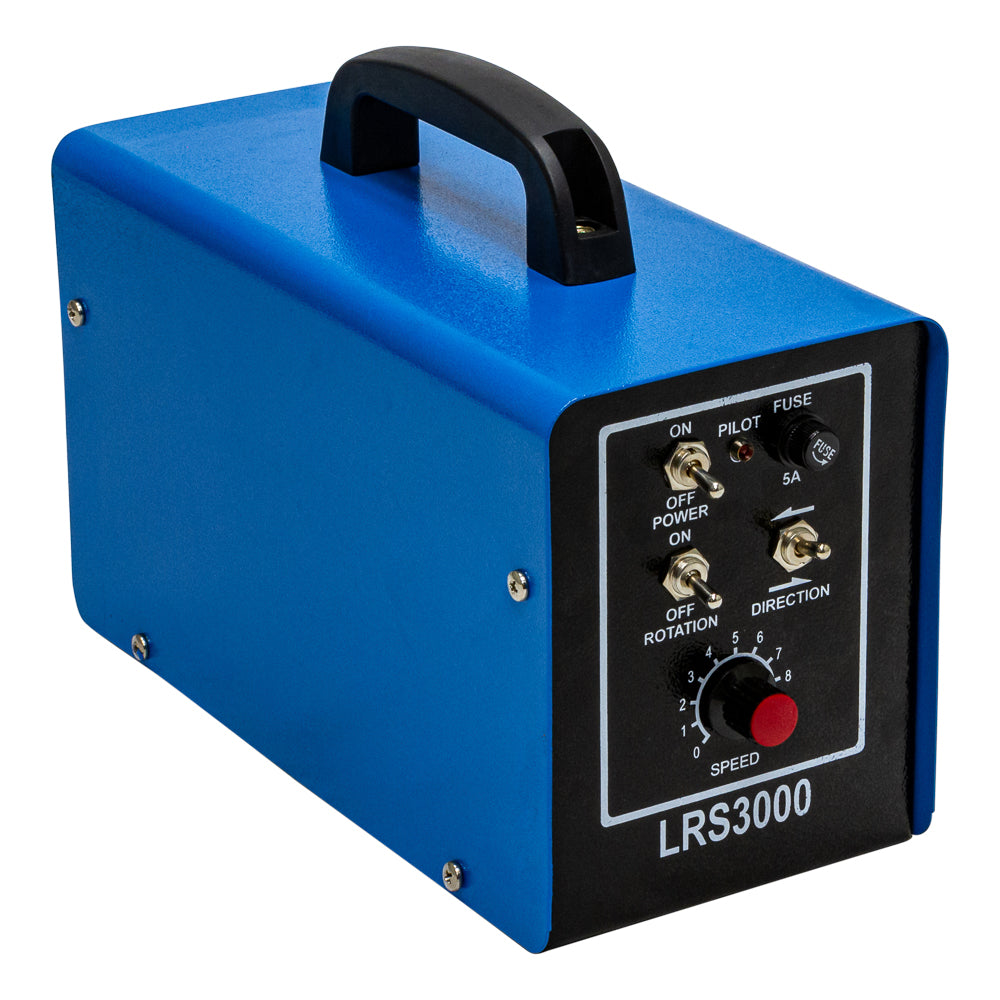

Welding roller stand This Cowley welding roller rack is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotation speed, welding can be performed extremely precisely. The machine therefore contributes to improving the safety, precision, effectiveness and speed of welding work. Using the control box, the rotation on/off, rotation direction left/right and rotation speed can easily be adjusted. Finally, the machine is operated with the foot pedal. Technical specifications:

• voltage = 230V
• frequency = 50/60 Hz
• power = 400W
• loading capacity = 3000kg
• rotation speed = 100-1100mm/min
• diameter range = 70 - 1200mm
• roller diameter = 200mm
• width rollers = 50mm
• control box dimensions = 320 x 140 x 180mm
• welding roller rack dimensions = 810 x 660 x 435mm
