Productinformatie:

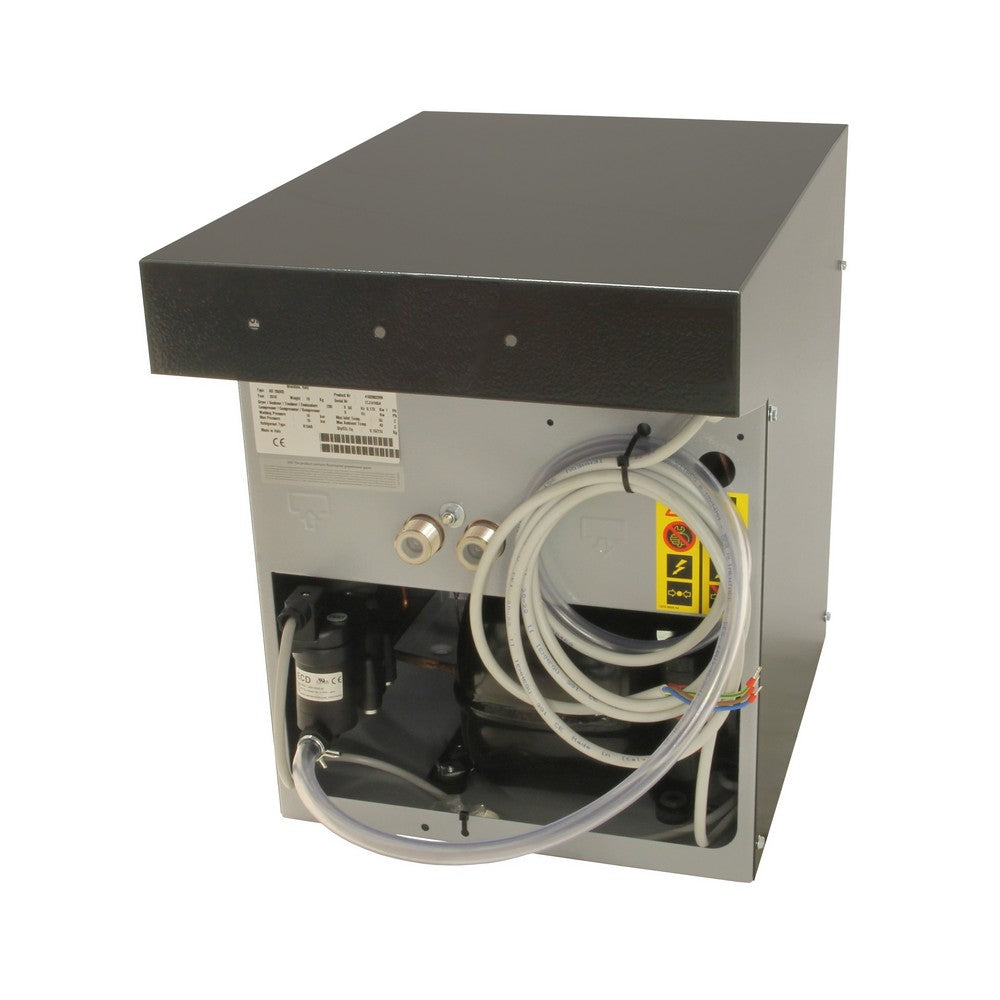

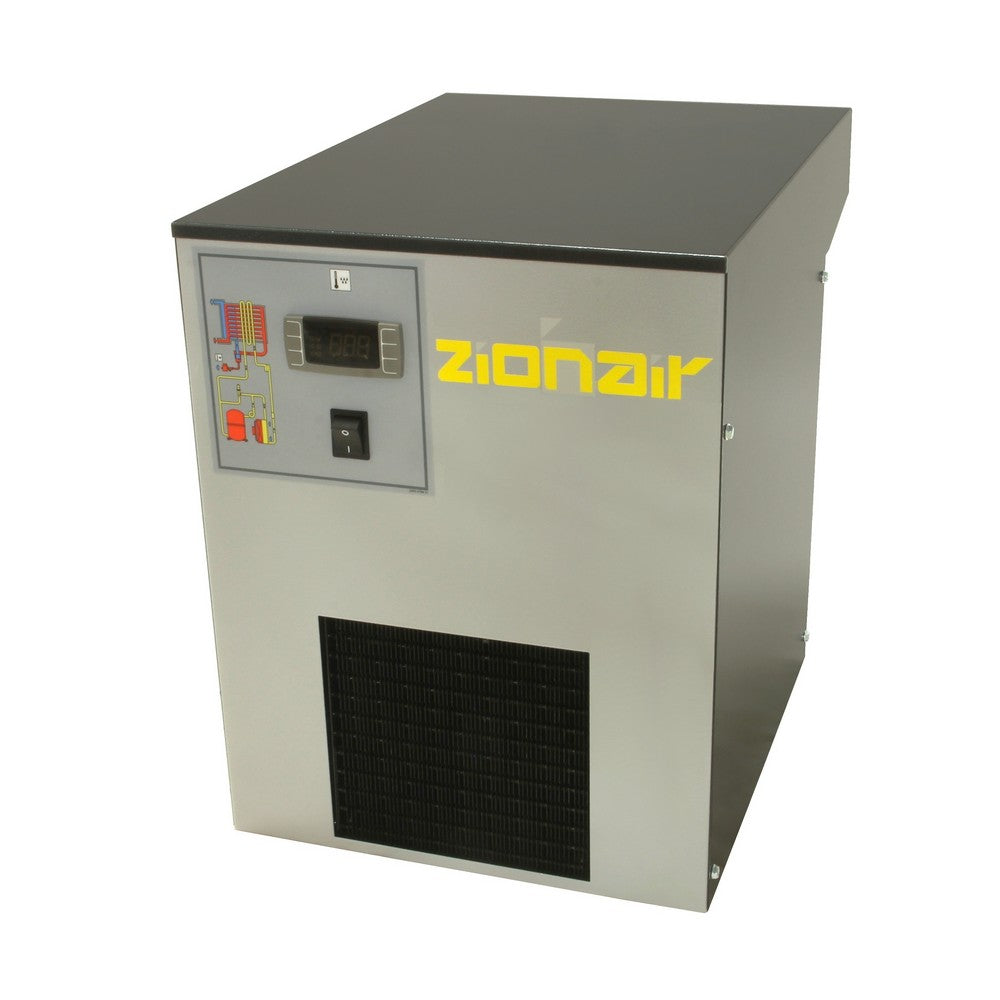

Refrigerated dryer / compressed air dryer

This ZionAir professional air dryer is very suitable for drying compressed air for industrial use.
Nowadays, not only is the production of a certain amount of compressed air important, but also the purity of the air. The ZionAir refrigeration dryers provide the right solution for removing condensate for greater efficiency.
Important benefits are:
- longer lifespan of the equipment due to less wear
- greater productivity and lower maintenance costs thanks to less downtime

Technical specifications:
- max. pressure = 16bar
- refrigerant = R134A
- air output = 45m3/h / 750L/min
- power = 164W
- voltage = 230V / 50Hz

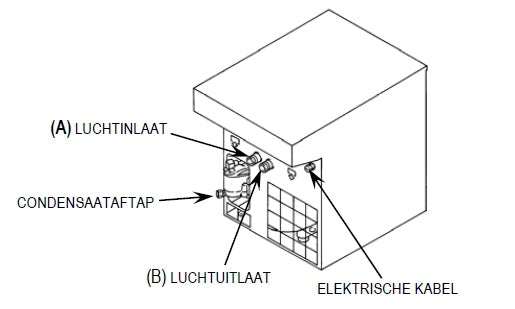

- air connection = 3/4'' M gas thread/din
- connection couplings = 1/2'' M gas thread/din
- automatic condensation separator
- the specified air output is achieved at an ambient temperature of 25°C and an inlet air temperature of 35°C
