Air floor jack 80T - 50T

In stock - 5 items available
SKU: VP-FJ80AHT
Regular price €1.650,00

This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use. With these air floor jacks, safely lifting trucks, buses, trailers, trucks and machines, among others, becomes a simple job.

Thanks to its well-thought-out design, this air floor jack has the following useful features:

  • Dead man's control: jack switches off immediately when the joystick is released
  • optimal stability due to the wide base
  • hard chrome cylinders, both internally and externally
  • cylinders are equipped with seal rings to prevent oil leakage
  • Overpressure valve ensures safety against overload
  • reducing valve for delay during lowering
  • large sturdy rubber wheels

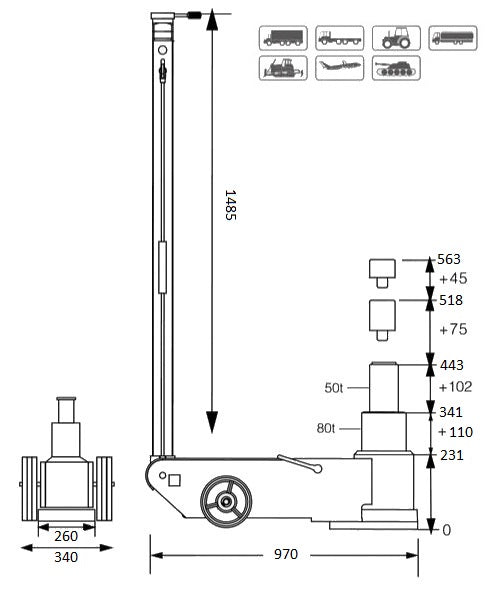

Specifications:

  • capacity = 80T / 50T - 2 stages
  • minimum lifting height = 231mm
  • maximum lifting height without attachments = 445mm
  • maximum lifting height with attachments = 565mm
  • stage 1 - 80T = 110mm, height from floor = 341mm
  • stage 2 - 50T = 102mm, height from floor = 445mm

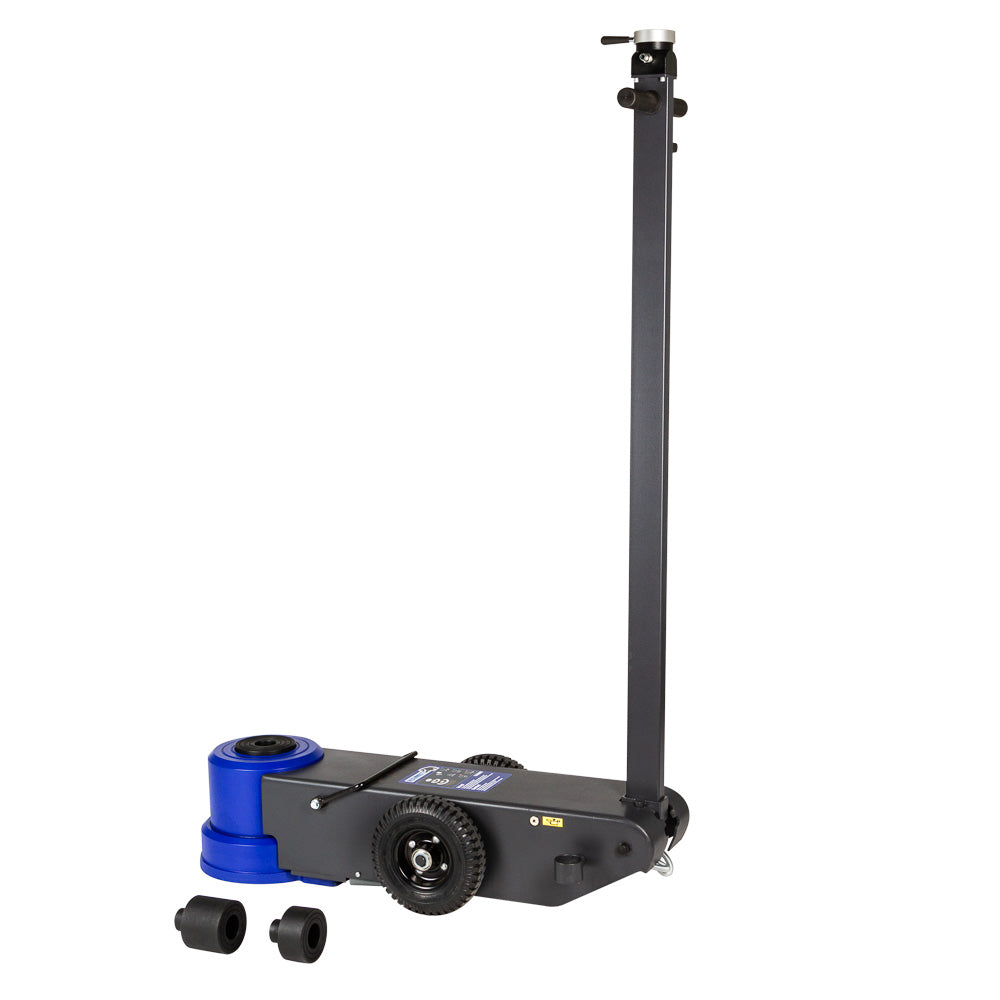

  • attachments = 75mm and 45mm
  • average air consumption = 300L/min
  • working pressure = 9 - 12 bar
  • coupling = euro 1/4'' thread

Additional product sizes and packaging information.
  • Product weight_____: 115.0
  • Product length______: 0.0
  • Product width_____: 0.0
  • Product height______: 0.0
  • Total weight______: 119.0
  • Package length___: 420.0
  • Package width__: 1390.0
  • Package height___: 450.0
