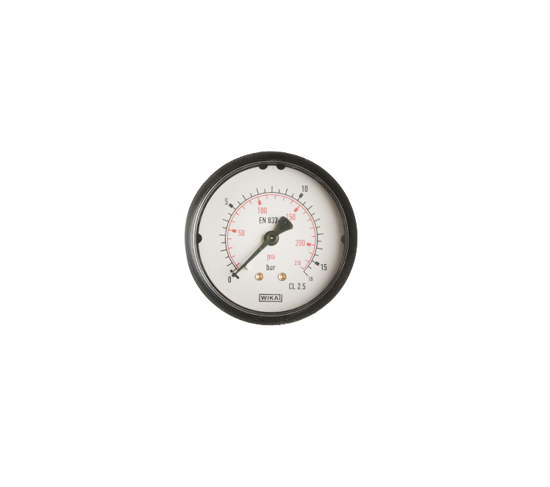

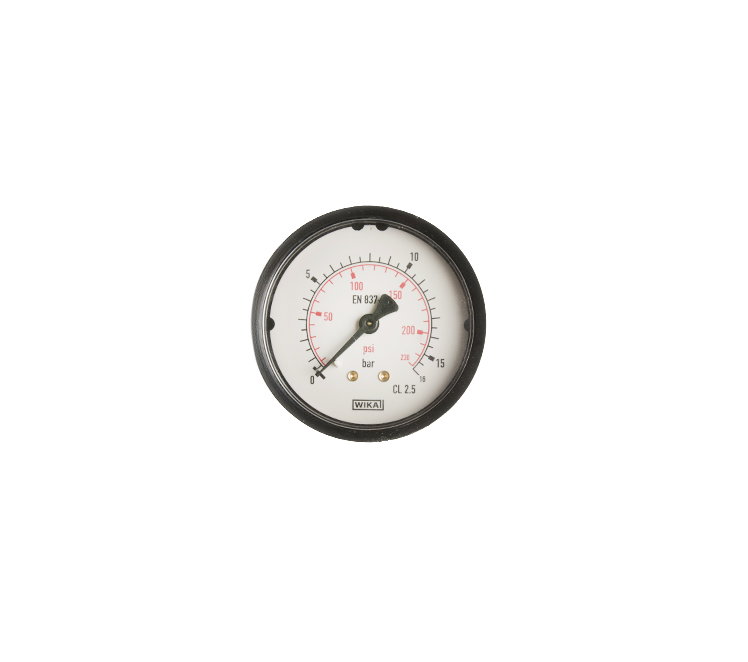

Manometer blank 0-16 bar 63mm
Regular price
€18,97
| Article number | 6344 |
| Product name | Manometer blank 0-16 bar 63 mm rear connection 1/4" |
| Kind | Rear connection - 63mm - Bulkhead Model |
| Type | pressure indication blank |
| Description | This manometer with a case diameter of 68 mm is used to read the working pressure of a pressure reducing valve. The manometer is equipped with a connection nipple G1/4" at the rear in accordance with DIN 16288. This manometer is manufactured in accordance with EN 837. It is a class 1.6 manometer. |
| Weight | 94 grams |
| Height | 49mm |
| Length | 68mm |
| Width | 68mm |
| Remark | The manometer is best mounted with an aluminum sealing ring (6500) or using fiber sealing rings (6501 and 6502). This manometer should NOT be mounted with Teflon tape. This pressure gauge can be built into a panel with bulkhead flange 6349. |
