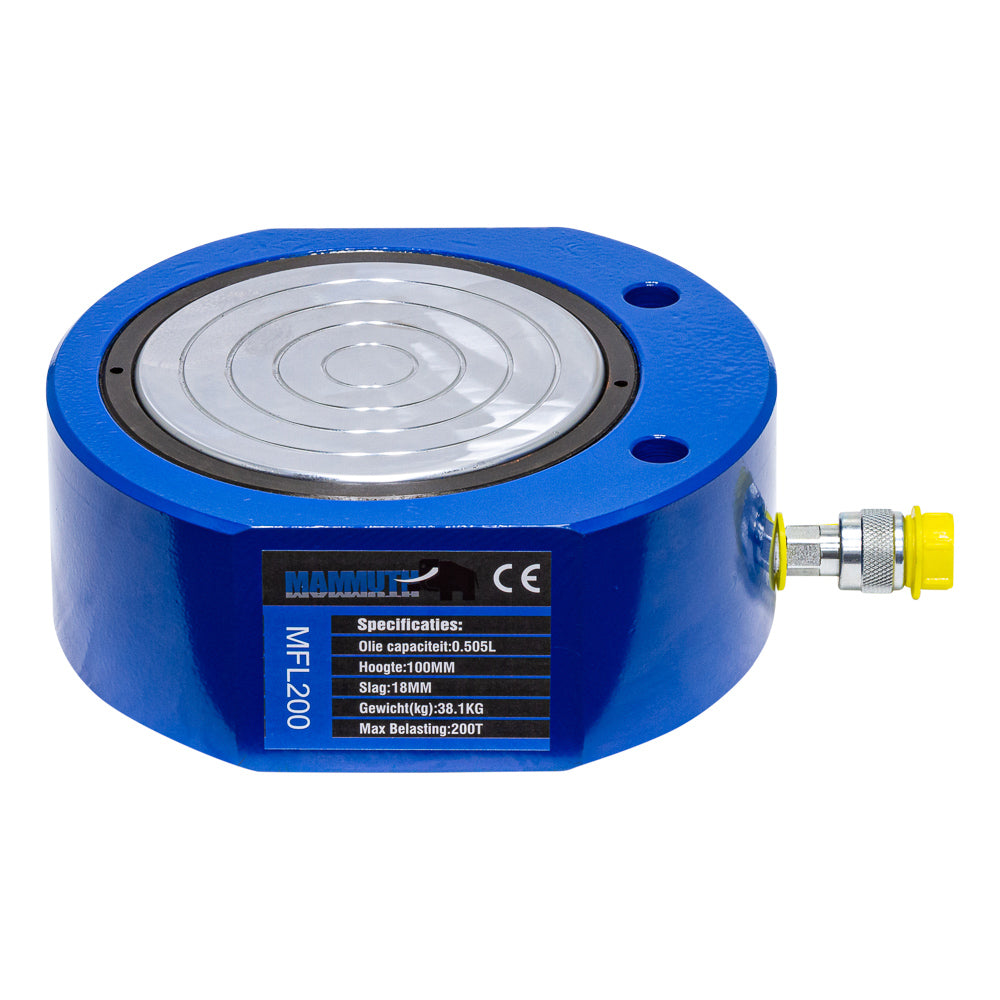

Flat cylinder 200 tons stroke 18mm
Regular price
€500,00
Flat cylinder
This cylinder is easy to use in tight spaces. The surface of the plunger is finished with a chrome plate. The plunger retracts automatically.
- tonnage = 200 tons
- stroke = 18mm
- effective cylinder surface = 224.2cm^2
- oil capacity = 0.505 L
- height of product = 100mm
- extended height = 118mm
- outside diameter = 274x239mm
- support surface diameter = 189mm
- plunger diameter = 169mm
- thread for oil input = 3/8''-19
- height of the top cap = 2mm
- max. pressure = 700bar
Additional product sizes and packaging information.
- Product weight_____: 36.0
- Product length______: 310.0
- Product width_____: 232.0 Product
- height_____: 100.0
- Total weight______: 38.0
- Package length___: 385.0
- Package width__: 335.0
- Package height___: 210.0
