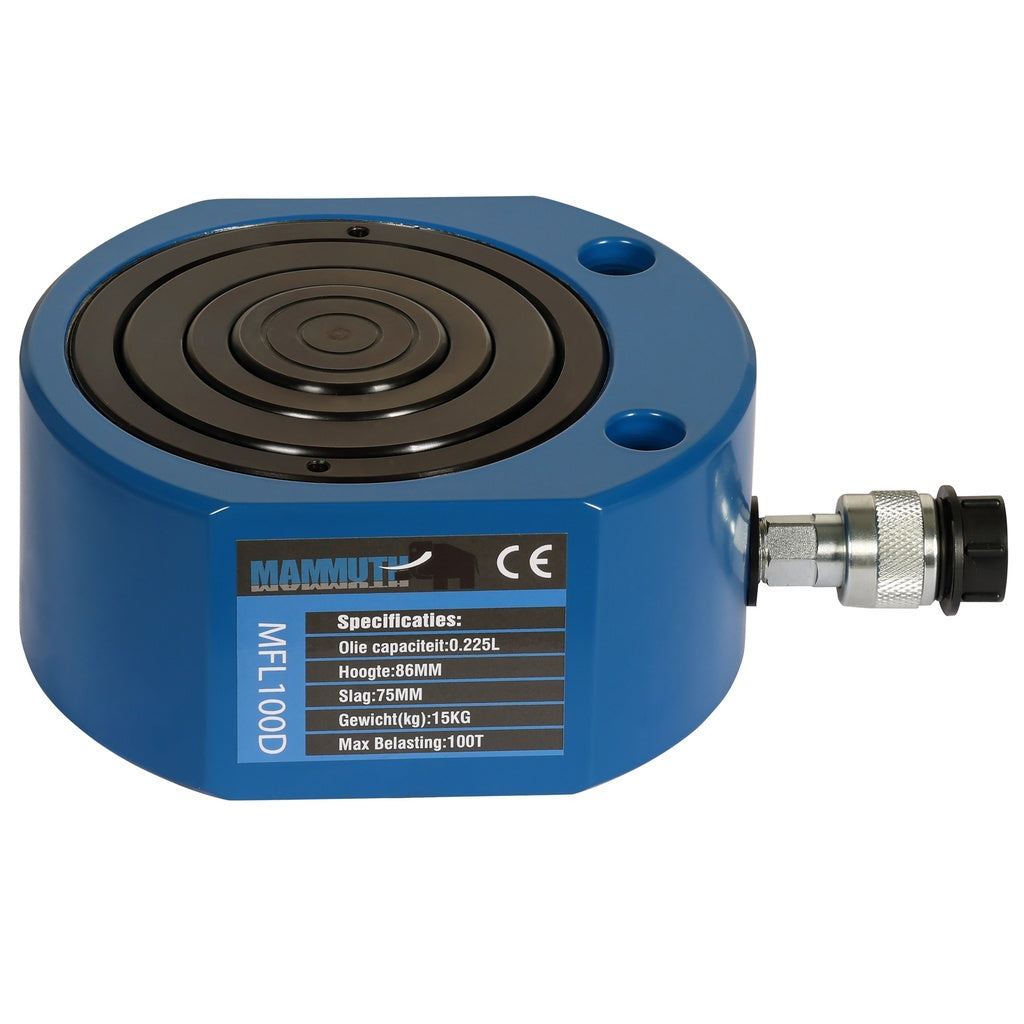

Flat cylinder double 100 tons stroke 75mm

Flat cylinder double

The stroke of the double cylinders is higher than that of the single cylinders.
This cylinder is easy to use in tight spaces.
The surface of the plunger is finished with a chrome plate.
The plunger retracts automatically.

- tonnage = 100 tons
- stroke = 75mm
- effective cylinder surface = 95cm^2
- oil capacity = 0.225 L
- height of product = 86mm
- extended height = 163mm
- outside diameter = 185x160mm
- support surface diameter = 130mm
- plunger diameter = 110mm
- max. pressure = 700bar
