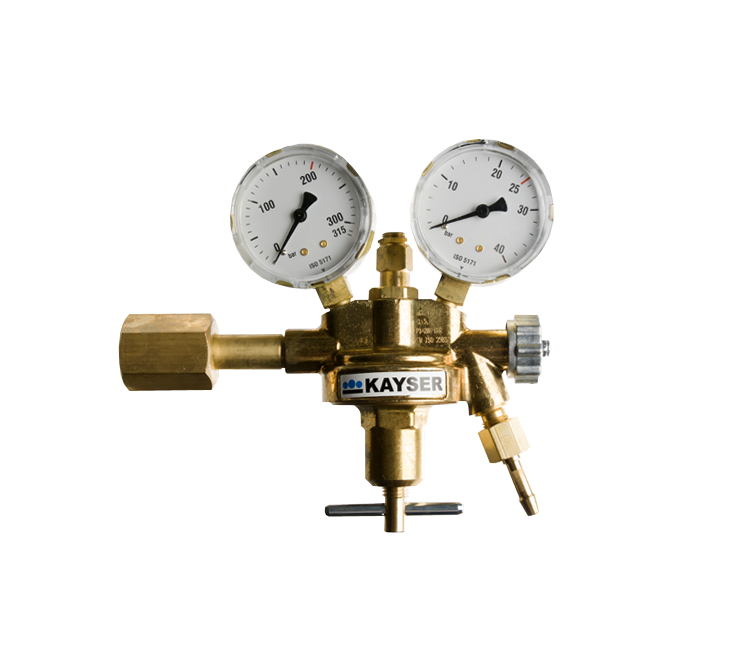

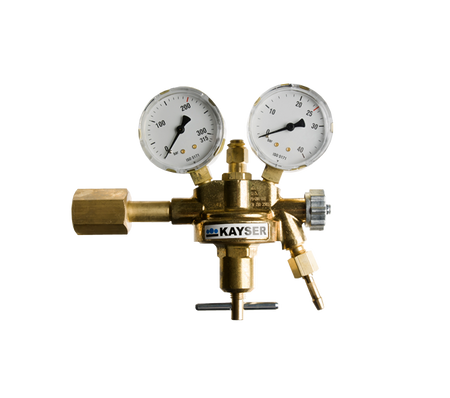

Reducing valve nitrogen MD Kayser 0-25 bar

Product description

You can use this pressure reducing valve to reduce the pressure of a nitrogen cylinder (up to 200 bar) to an operating pressure adjustable between 0 and 25 bar. The primary connection is 24.32 R internal (for RU 3 cylinder). The secondary connection is 1/4"R external with a hose tail for a 6 mm hose (EN 560). The pressure gauges around 63 mm are class 2.5. The valve is equipped with a side shut-off valve. The blow-off safety is set slightly above 25 bar.

Remark

The standard nitrogen reducing valve (917005) has an operating pressure adjustable between 0 and 10 bar. This reduction valve has a higher working pressure than the standard valve. Other cylinder connections are used abroad. These are available on request.

Dimensions
