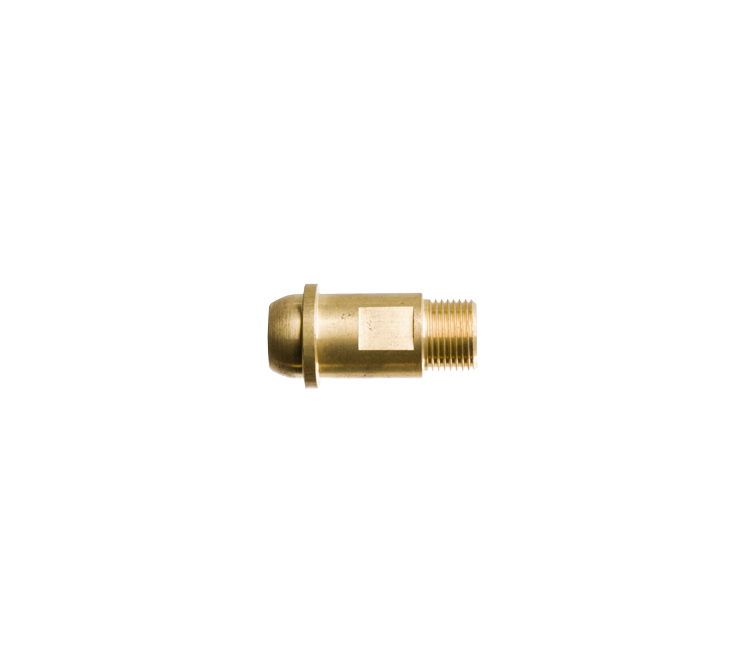

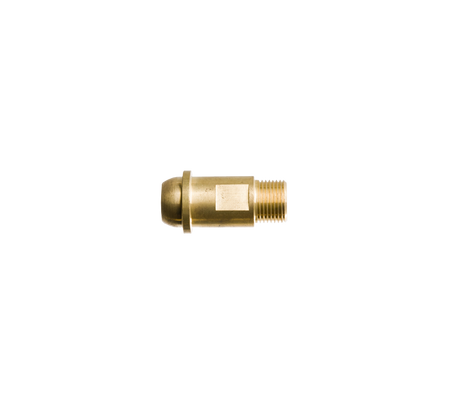

Screw sleeve chest 3/4 x 3/8R
Regular price
€8,18
| Article number | 940005 |
| Product name | Screw sleeve chest 3/8" x 1/4"r for swivel 3/8" with hole @ 13.2m |
| Kind | |
| Type | 0 |
| Description | The screw grommet can be used to mount a 3/8" right or left union with a conical seal in a blind hole with a 1/4" thread, as is often the case with solenoid valves or ball valves. The ball of the screw grommet is produced according to EN 560. |
| Weight | 26 grams |
| Height | 15mm |
| Length | 31mm |
| Width | 15mm |
| Remark | The threaded side has a flat seal. On request we can provide this side with a hollow cone. For installation, a hexagon for an Allen key has been placed in the grommet. Please note: the gas of the swivel must be drilled out to 13.2 mm. |
