SPG-1 Welding Height Gauge
€19,30
incl. BTW
€15,95
excl. BTW
€15,95
SKU
NMR1112
Shipping calculated at checkout.
Productinformatie:

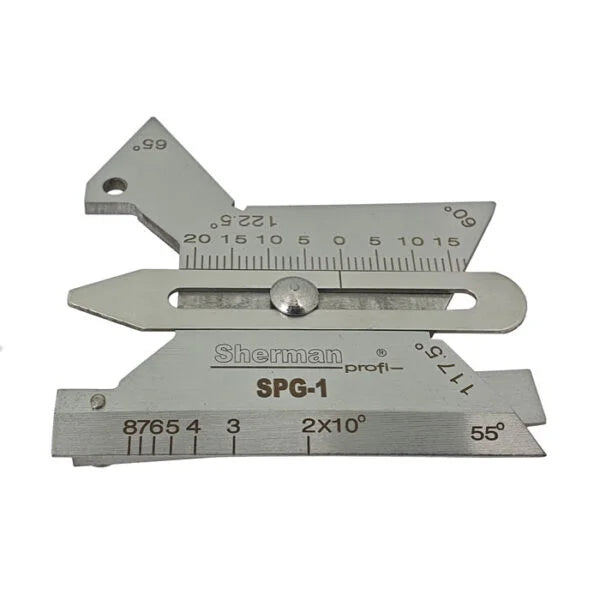

SPG-1 Welding Height Gauge
The SPG-1 weld gauge is used to measure the height and width of a butt weld, the height of a fillet weld, bevel angles and joint width.
SPECIFICATION
| Catalog number | NMR1112 |
| Fillet weld height [mm] | 0 – 15 +- 0.2 |
| Butt weld height [mm] | 0 – 15 +- 0.2 |
| Joint width [mm] | 0 – 20 +- 0.3 |
| Bevel angle [º] | 20 – 80 , 55 , 60 , 65 , 117.5 , 122.5 |
| Slot width [mm] | 0.5 – 5 +- 0.1 |
| Packaging | plastic box |
| Weight (kg] | 0.046 |
