Two column lift bridge 4000kg floorless 2 in 1 EVA Cascos

Two pole bridge / spindle bridge / car bridge / EVA / electric vehicle adapter

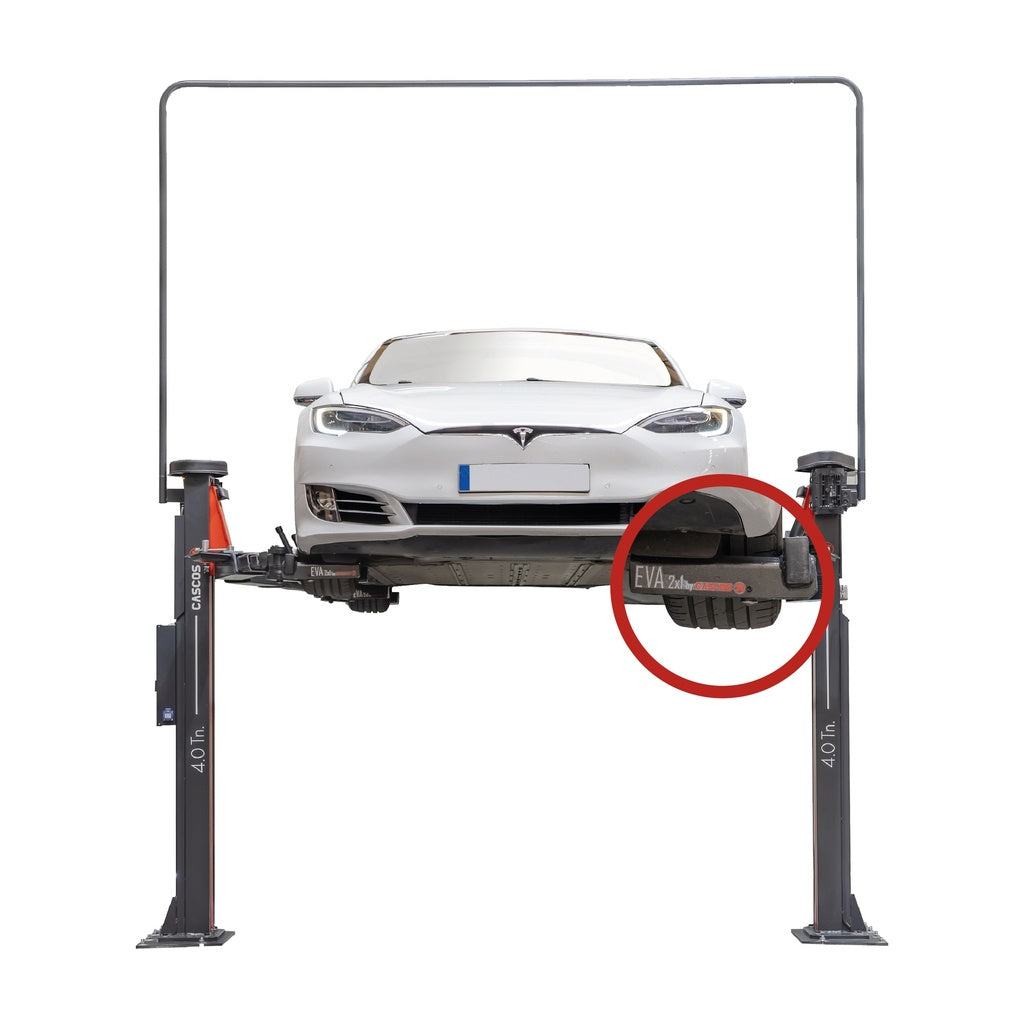

Two column spindle lift bridge EVA (Electric Vehicle Adapter) incl. wheel mounting adapters & rubber pad lift mounting. This two-column spindle 2 in 1 lift bridge has a very large lifting range and can lift hybrid and fuel vehicles in addition to electric vehicles. Thanks to the interchangeable lifting arms, the EVA system can be used, which involves lifting via the tires, so no additional adapters are required for lifting electric vehicles.

Technical specifications:

• capacity = 4000kg
• voltage = 400V
• engine power = 3.3kW
• min. recording height = 100mm
• max. lifting height = 1970mm
• distance between columns = 2700mm
• height of the columns = 2435mm
• total height = 4250mm
• weight = 750kg

Please note: The price for this lift bridge does not include delivery and installation of the bridge. For more information regarding installation and service contracts, please contact one of our employees.
