Productinformatie:

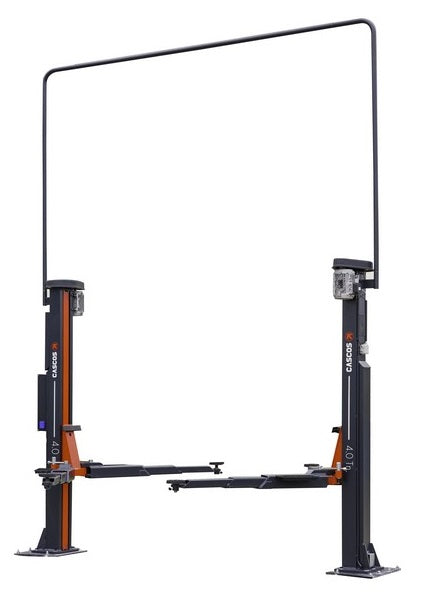

Two pile bridge / spindle bridge / car bridge

Cascos brand lifts are of 100% European production. Cascos has more than 50 years of experience in the field of lift bridges, resulting in a very reliable and extremely strong end product. Three key words are central to Cascos lift bridges, namely: Reliability, functionality and safety.

The robust construction of the bridges and the high quality of the components ensure high reliability and low maintenance costs. Due to the complete symmetry, the vehicle can be positioned in any direction of travel. This in combination with the extendable arms ensures that maximum load is possible at every point. The robust columns, the steel bearings, but especially the safety nuts ensure a very high level of safety.

Furthermore, the Cascos pile bridges have a number of very well thought-out features:

• SlenderTec solid columns: Very robust, 10 to 23mm thick.
• Extendable symmetrical arms: Bridges are designed to withstand maximum loads at any angle and all lengths.
• Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear of the working nut. Less lubrication is also required.
• Steel bearings: Less wear and tear compared to nylon systems because they last longer. They also provide support to the columns.
• Safety nuts: Extra sturdy for bridges with a capacity of up to 5500kg.

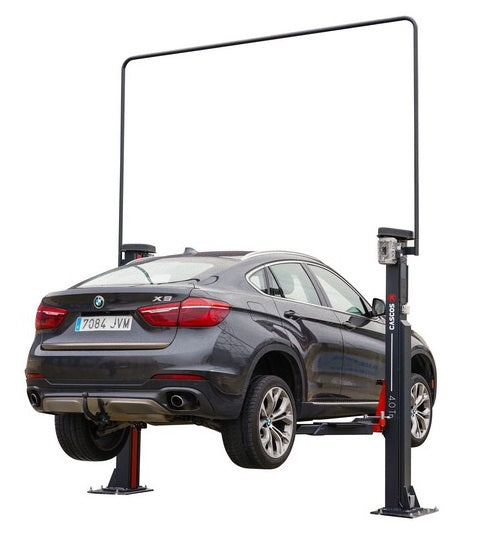

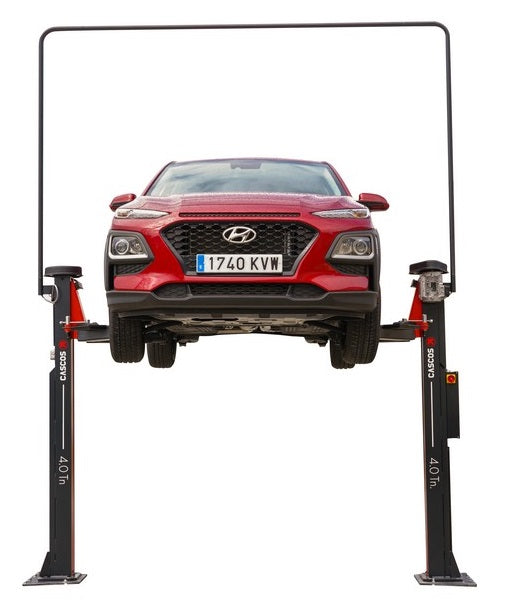

Thanks to the high capacity of 4 tons, the floorless design and the large reach of the lifting arms, this Cascos bridge is indispensable in any professional garage or workshop. The bridge is very versatile and suitable for almost any vehicle.

The lift bridge has the following well-thought-out features:

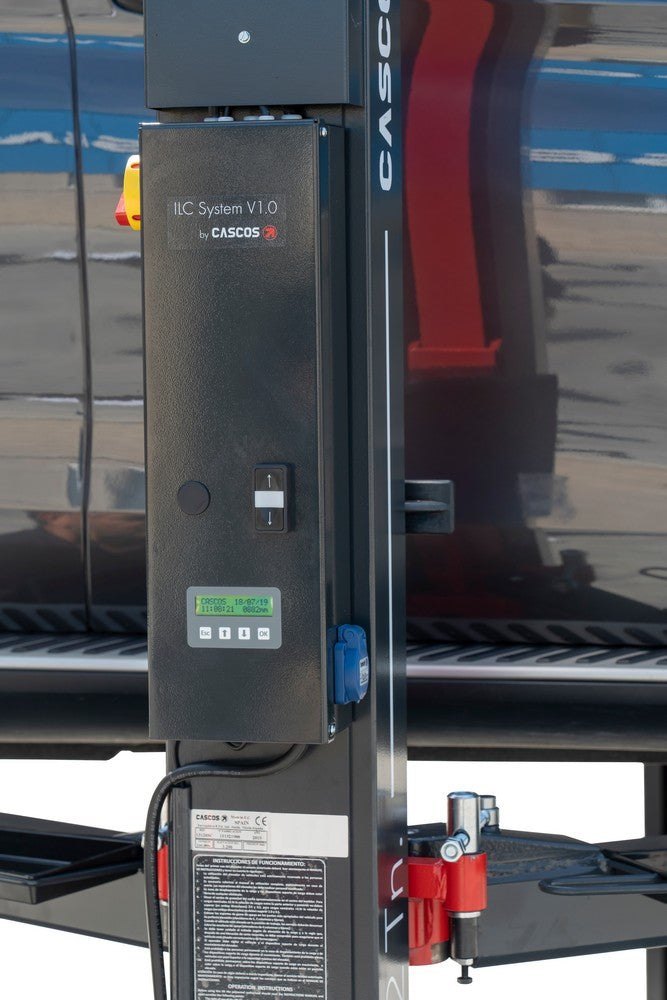

• ILC system (Intelligent Lift Control): An innovative control system that controls the operation of the lift and can display the following on the LCD screen: safety warnings, useful information about the operation of the lift, operational messages, maintenance messages and troubleshooting.
• Electrical synchronization with electronic board and detectors: the electronic board is programmable and protected against voltage changes and short circuits. In addition, this system allows quick and easy identification of the operating status of the elevator and allows the ILC system to operate.
• Independent motors in each column.
• The level is controlled via 4 inductive sensors that ensure absolute synchronization of the lift, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.
• It is possible to connect the motor via a buried installation or to work without an arc for the same price. Ask one of our employees about the possibilities.
• Floorless: Provides optimal workspace between the columns.

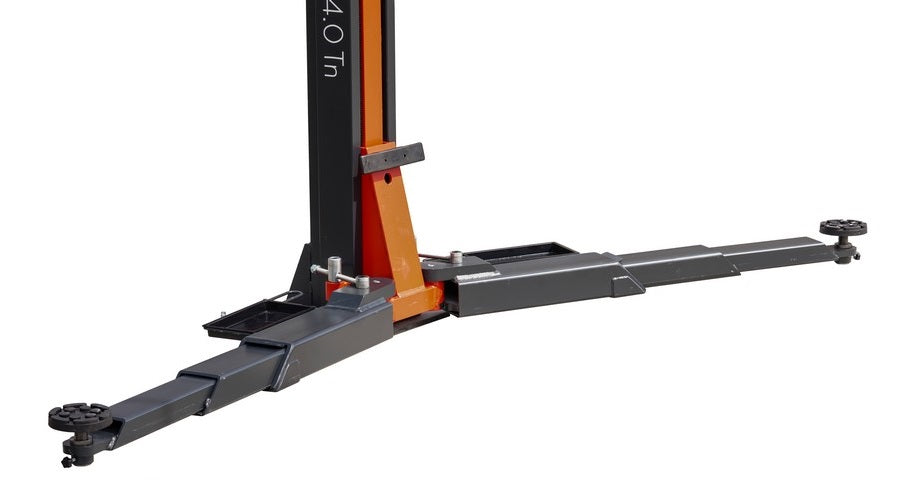

• Symmetrical arms: 4 arms that extend 3 times.
• Double screw spindles for extra high absorption.

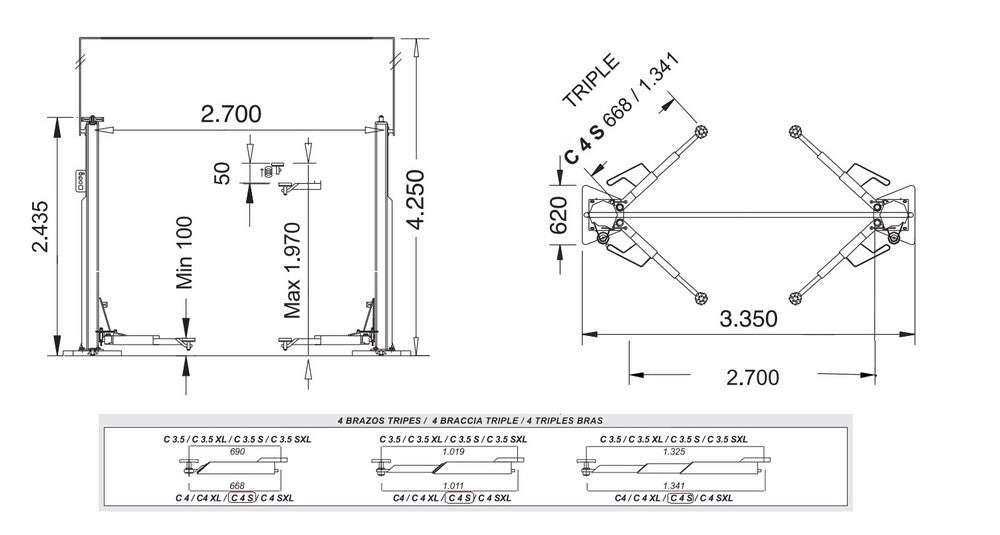

Specifications:

• capacity = 4000kg
• voltage = 400V / 3-phase
• engine power = 3 + 3kW
• minimum height = 100mm
• maximum height = 1970mm
• lifting time = 45 seconds
• distance between columns = 2700mm
• height of the columns = 2435mm
• total height = 4250mm
• range triple arms = 668 - 1341mm
• total weight = 750kg

Please note: The price for this lift bridge does not include delivery and installation of the bridge. For more information regarding installation and service contracts, please contact one of our employees.
