Four column lift bridge 4000kg 4.8m alignment 3m passage width Cascos

Four pole bridge / alignment lift / service lift / car bridge / carriageway lift bridge

Cascos brand lifts are of 100% European production. Cascos has more than 50 years of experience in the field of lift bridges, resulting in a very reliable and extremely strong end product. Three key words are central to Cascos lift bridges, namely: Reliability, functionality and safety.

The robust construction of the bridges and the high quality of the components ensure high reliability and low maintenance costs. With a very low minimum ramp height and a maximum lifting height of 2000mm, these bridges are very versatile and suitable for cars, buses and 4x4 vehicles. The bridges are equipped with a safety indicator and have both mechanical and pneumatic safety.

Furthermore, the Cascos four pile bridges have a number of very well thought-out features:

• Double T-beams: Roadways reinforced with double T-welded steel beams. These are virtually impossible to deform, withstand loads better over time and ensure that the roadway is perfectly flat, ideal for very precise work.
• Extra safety: Cascos gives priority to safety above all else and has developed a double safety system for all columns, namely: Mechanical safety: by means of a safety bar. Pneumatic safety: through security ladders.
• Leveling alarm: Cascos bridges have an indicator lamp that warns if the roadways are poorly level and ensures that the cylinder works in perfect conditions, which ensures a longer lifespan.
• Hydraulic cylinders: Produced and tested one by one in the factory.
• Convenience and efficiency: Manual lowering valves to lower the bridge in case of power failure or malfunction. Adjustable lifting timer that can speed up lowering depending on the loading volume.
• Thermal protection: Electric motors have thermal protection against overheating.
• Cascos four-column lift bridges require less installation space and have a larger working surface, which makes the bridge unique in its kind.

This alignment model four-column lift bridge has a capacity of 4 tons and has the following features:

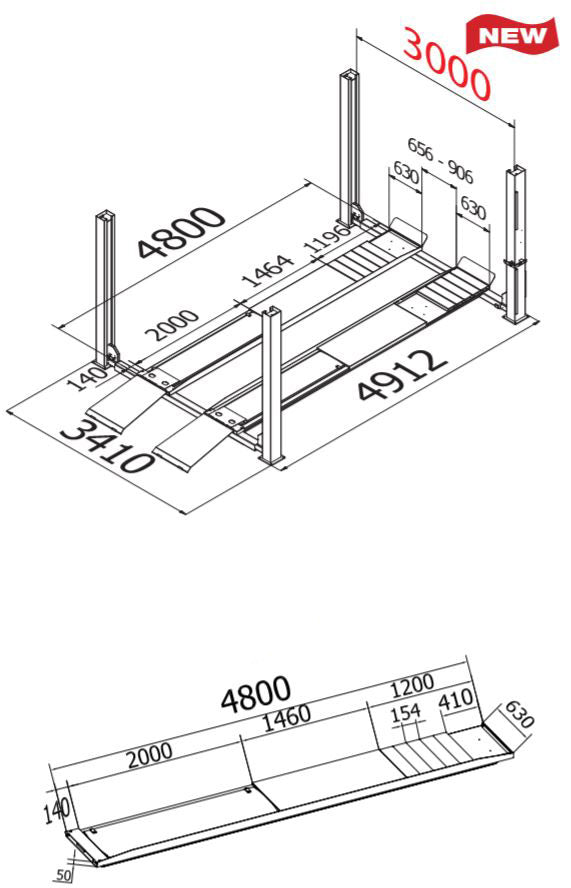

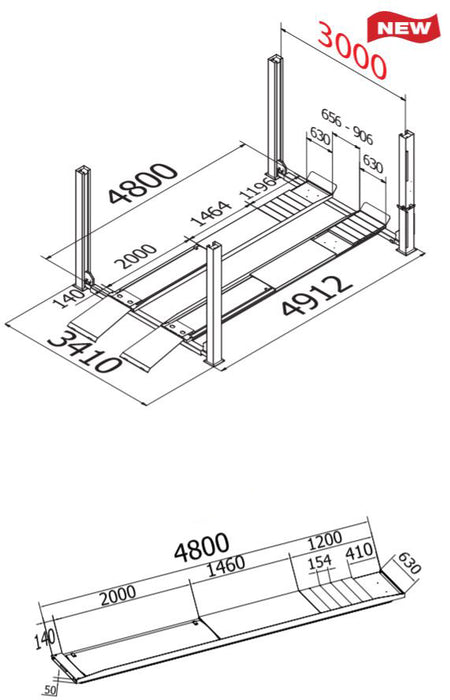

• Long alignment lanes of 4.8 meters long and 630mm wide.
• A passage width / distance between the columns of no less than 3 meters. This makes the bridge very suitable for alignment and provides an ideal working space near the vehicle.
• Wide lanes of 630mm, suitable for working with wider tires.
• With a minimum ramp height of only 180mm, this lift bridge is the lowest alignment bridge on the market. Due to the low ramp height, the ramps are shorter, making the bridge also suitable for low vehicles, such as sports cars.

Specifications:

• capacity = 4000kg
• voltage = 230-400V / 3-phase
• engine power = 3kW
• minimum ramp height = 180mm
• maximum lifting height = 2000mm
• length of the lanes = 4800mm
• width of the lanes = 630mm
• distance between the lanes = 740 - 990mm
• passage width / distance between columns = 3000mm
• height of the columns = 2410mm
• lifting time = 40 seconds
• electro-hydraulic

Please note: The price for this lift bridge does not include delivery and installation of the bridge. Extended warranties only apply in combination with a Spoods installation/maintenance contract. For more information, please contact one of our employees. The presence of a forklift truck is necessary to unload the bridge!
