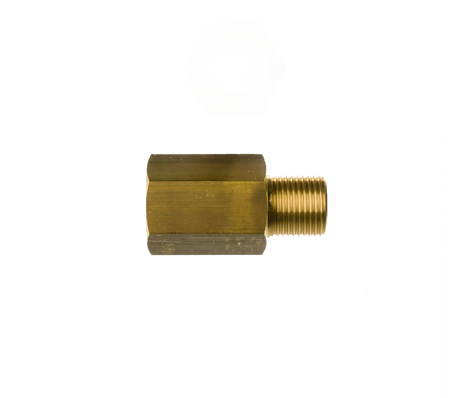

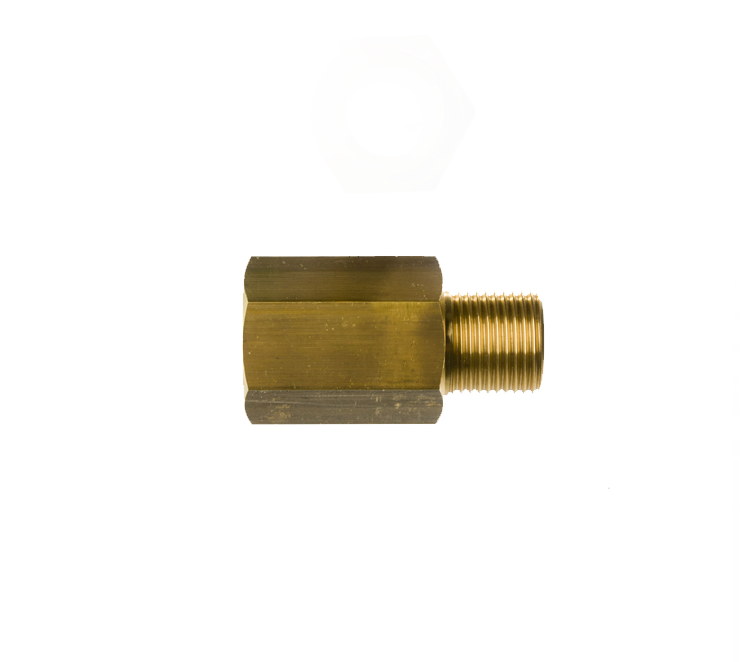

Oxygen gland 5/8r Ri2 60 mm brass
Regular price
€8,92
| Article number | 916150 |
| Product name | Oxygen union 5/8"r extra long |
| Kind | cylinder connections NEN (Dutch) |
| Type | 0 |
| Description | This cable gland has a length of 60 mm and is used if the standard cable gland according to NEN 3268 (916136 length 35 mm) cannot be reached with a key. The 5/8" male thread is used for oxygen. The corresponding connection pin has a convex seal that seals metallic. It is also called the POL connection. A 5/8" thread is a BSP thread and has a pitch of 14 courses per inch. |
| Weight | 218 grams |
| Height | SW 30mm |
| Length | 60mm |
| Width | SW 30mm |
| Remark | The 5/8"r cylinder connection is also called the Ri2 connection. Ri stands for right internal because there is a right internal thread on the cylinder. |
