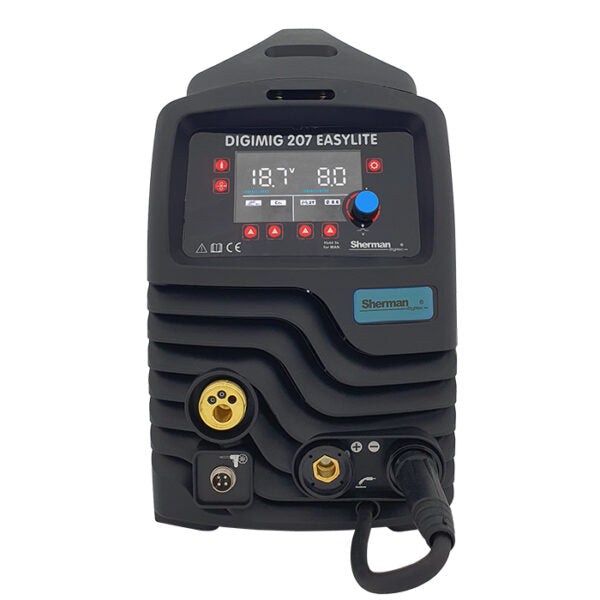

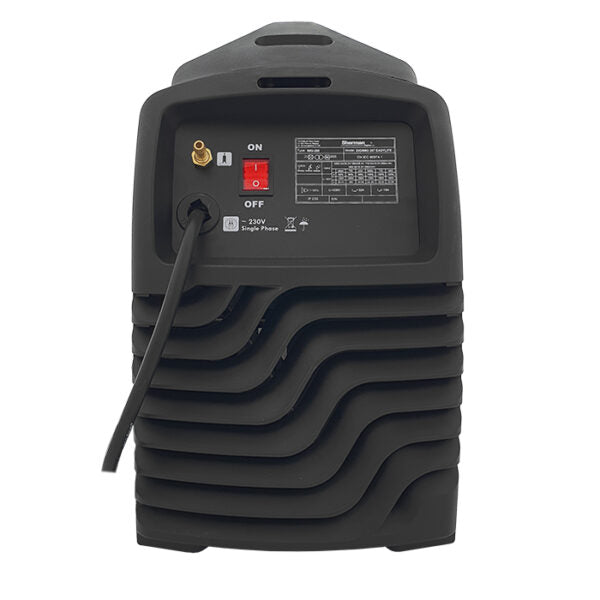

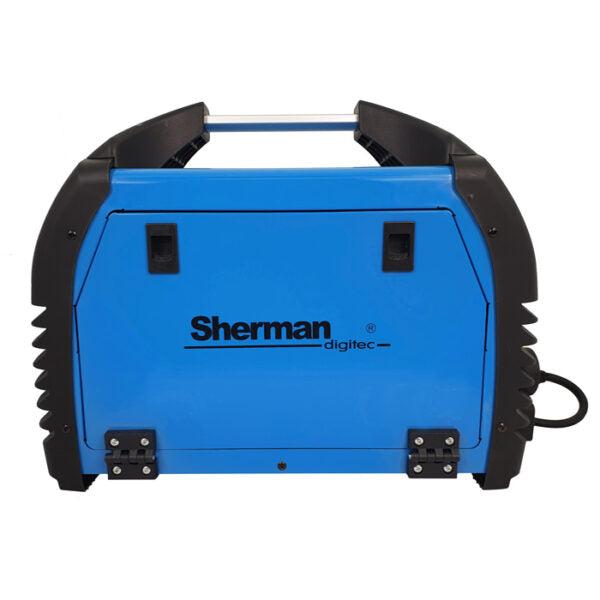

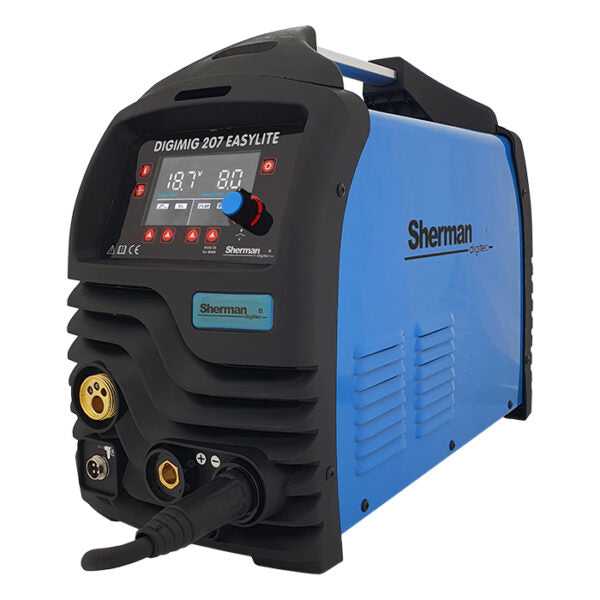

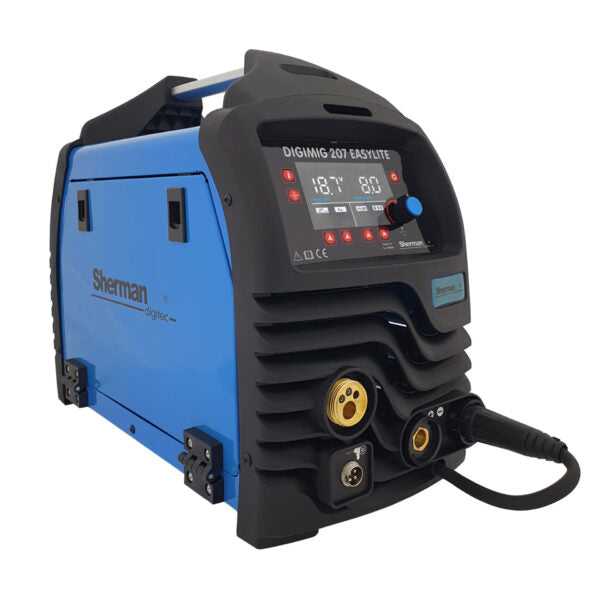

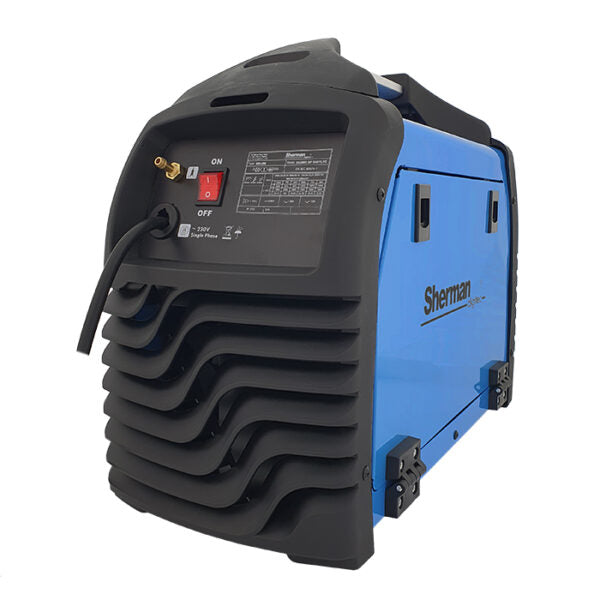

DIGIMIG 207 EASYLITE synergic inverter welding machine
€482,79
incl. BTW
€399,00
excl. BTW
€399,00
SKU
7812674
Shipping calculated at checkout.
Productinformatie:
DIGIMIG 207 EASYLITE synergic inverter welding machine
PRODUCT DESCRIPTION
The synergistic welding machine DIGIMIG 207 EASYLITE is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (coated electrode), TIG Lift and MIG/MAG methods. The MIG/MAG method can be used in manual and synergic mode, which simplifies operation and allows the welding machine to be used by people with less experience and hobbyists. By changing the polarity, the device enables MIG/MAG welding with both standard wires shielded with protective gases and self-shielded cored wires.
The welding machine is made using IGBT technology, which significantly reduces the weight and size of the machine and increases efficiency while reducing energy consumption.

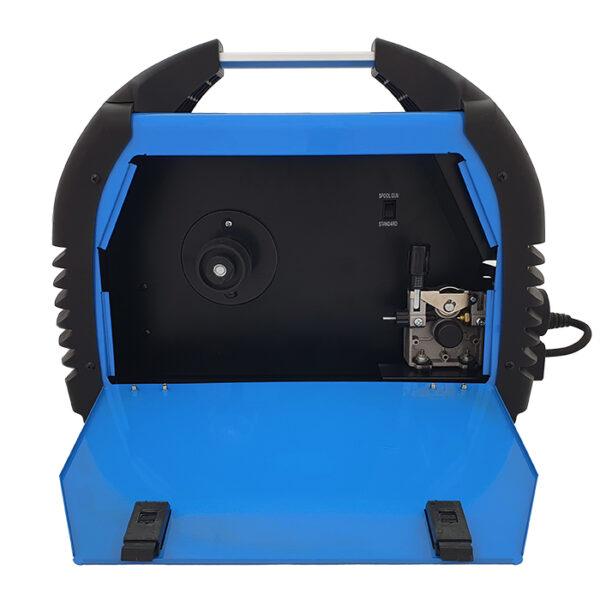

The device allows you to connect a Spool Gun (SG) holder to a mini wire feeder and a D100 spool of steel or colored wire.

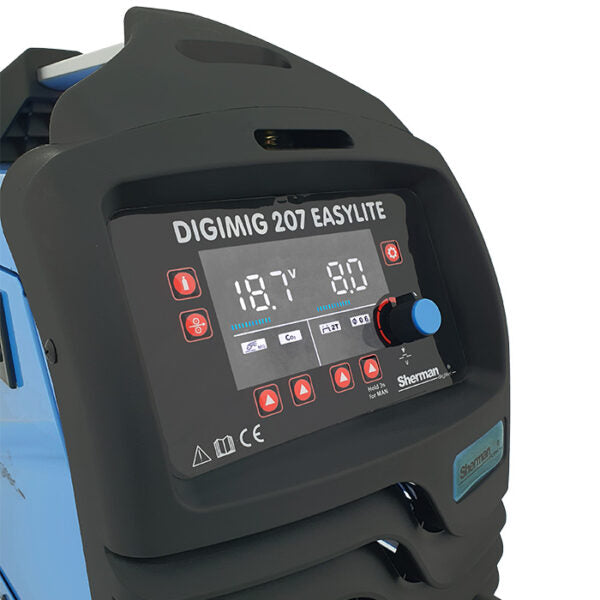

The welding machine is equipped with a color LED display , VRD function and adjustable Hot Start and Arc Force functions.
The set consists of a MIG welding torch, electrode cable, earth cable, shielding gas connecting hose, shield and hammer.
SPECIFICATION
| Catalog number | 7812674 |
| barcode | 5903686617713 |
| Welding/cutting/other methods | braze welding , MIG/MAG , MMA DC , TIG Lift (by rubbing) DC |
| Supply voltage [V] | AC230 |
| Production technology | IGBT |
| Maximum MMA welding current [A] | 160 |
| Max. TIG DC welding current [A] | 200 |
| Maximum MIG/MAG welding current [A] | 200 |
| MMA duty cycle [%] | 60 |
| TIG duty cycle [%] | 60 |
| MIG/MAG duty cycle [%] | 60 |
| No-load voltage [V] | 65 |
| Wire feed speed [m/min] | 2 – 12.5 |
| MIG welding voltage [V] | 16.5 – 24 |
| Correction of welding voltage | -1.0 – +1.0 |
| Maximum energy consumption MMA [kVA} | 7.7 |
| Max. TIG power consumption [kVA] | 7.7 |
| Maximum energy consumption MIG/MAG [kVA] | 7.7 |
| Maximum current consumption MMA [A] | 32 |
| Max. TIG power consumption [A] | 32 |
| Max. MIG/MAG power consumption [A] | 32 |
| Wed. wire coil ø [mm] | 100 , 200 |
| Roll dimensions [mm] | 30x10x10 |
| Main method | MIG/MAG |
| Functions | 2T/4T , Arc Force , Gas test , Hot Start , Spool Gun Option , 2-roller feed , Induction adjustment , Gasless welding , Digital control , Fast wire feed , Manual settings , Synergic settings , VRD , LED display |
| Network Security [A] | 16 |
| Warranty period companies [years] | 1 |
| Weight (kg] | 16.5 |
| Dimensions (L x W x H) [cm] | 49x22x37.5 |
EQUIPMENT INCLUDED
- TW-15/3m welding handle
- Electrode cable
- Ground cable
- Hammer with brush
